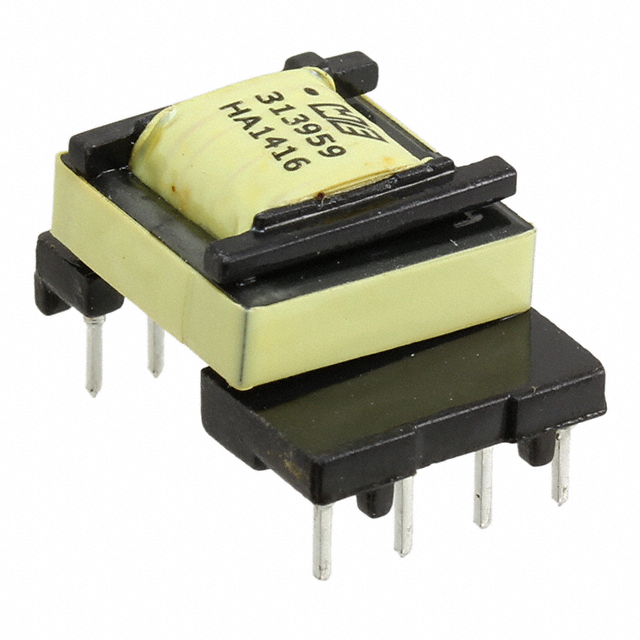

750313959 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750313959
Product Number:
750313959
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
XFMR ISOL AC/DC CONV 1.8MH TH
Datasheet:
Descnt:
Isolation For For AC/DC Converters SMPS Transformer 4500Vrms Isolation 100kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FB, MID-OLTI
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Isolation
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
120 ~ 375V
Voltage - Auxiliary
18V 10mA
Voltage - Isolation
4500Vrms
Inductance Frequency
1.8mH 10kHz
Frequency
100kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.540" L x 0.805" W (13.72mm x 20.45mm)
Height - Seated (Max)
0.405" (10.29mm)
Footprint
0.540" L x 0.805" W (13.72mm x 20.45mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Product Improvement 08/Jun/2023
75031yyyy Datasheet Correction 08/Mar/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1120
Standard Package
130
