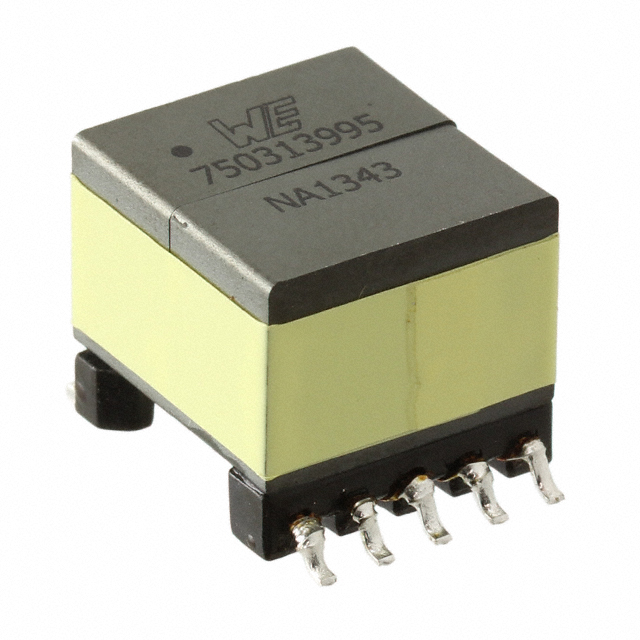

750313995 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750313995
Product Number:
750313995
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV 50UH SMD
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 300 ~ 600kHz Surface Mount
In Stock
47
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FB, MID-IBTI
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
FlyBuck™
Chipset Manufacturer
Texas Instruments
Voltage - Primary
15 ~ 40V
Voltage - Auxiliary
-
Voltage - Isolation
1500Vrms
Inductance Frequency
50µH 10kHz
Frequency
300 ~ 600kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
-
Height - Seated (Max)
0.505" (12.83mm)
Footprint
0.530" L x 0.699" W (13.46mm x 17.75mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
75031yyyy Datasheet Correction 08/Mar/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
200
