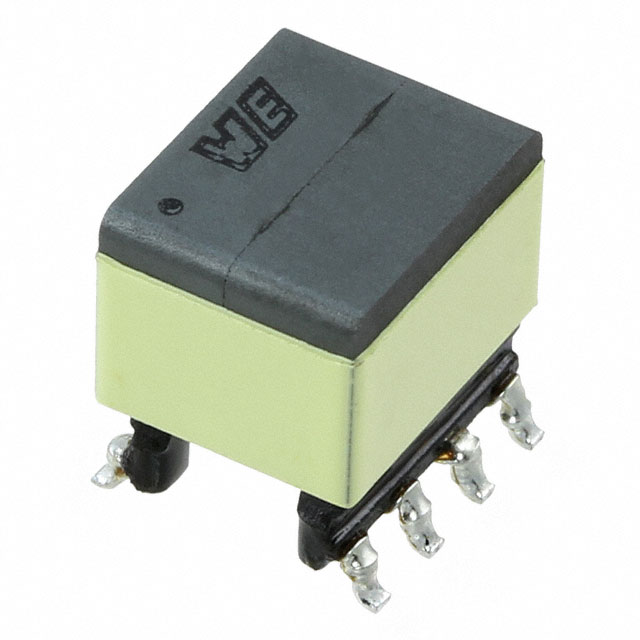

750314839 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750314839
Product Number:
750314839
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
XFMR RES CONV DC/DC CONV 3MH SMD
Datasheet:
Descnt:
Resonant Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 30 ~ 70kHz Surface Mount
In Stock
1287
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FW, MID-HB
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For DC/DC Converters
Applications
Resonant Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
3 ~ 5.2V
Voltage - Auxiliary
-
Voltage - Isolation
1500Vrms
Inductance Frequency
3mH 100kHz
Frequency
30 ~ 70kHz
Operating Temperature
-40°C ~ 100°C
Mounting Type
Surface Mount
Size / Dimension
-
Height - Seated (Max)
0.420" (10.67mm)
Footprint
0.385" L x 0.360" W (9.78mm x 9.14mm)
Documents & Media
Datasheets
PCN Design/Specification
750314839 Datasheet Update 18/Jan/2023
75031yyyy Datasheet Correction 08/Mar/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
300
