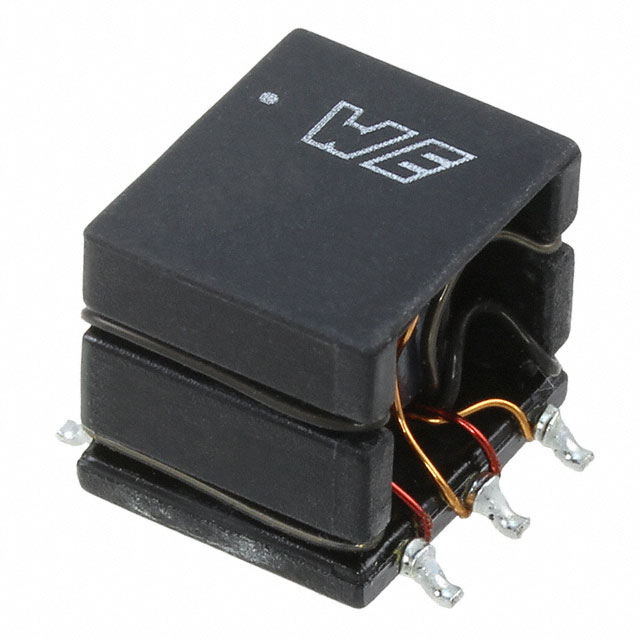

750315240 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750315240
Product Number:
750315240
MFR Standard Lead Time:
16 Weeks
Package/Case:
Detailed Description:
XFMR FWD P-P DC/DC CONV 110UH SM
Datasheet:
Descnt:
Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 5000Vrms Isolation 150kHz Surface Mount
In Stock
2679
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-PP, MID-PPTI
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For DC/DC Converters
Applications
Forward, Push-Pull Converters
Intended Chipset
SN6505A
Chipset Manufacturer
Texas Instruments
Voltage - Primary
-
Voltage - Auxiliary
-
Voltage - Isolation
5000Vrms
Inductance Frequency
110µH 100kHz
Frequency
150kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
0.485" L x 0.410" W (12.32mm x 10.41mm)
Height - Seated (Max)
0.440" (11.18mm)
Footprint
0.485" L x 0.607" W (12.32mm x 15.41mm)
Documents & Media
Featured Product
Transformers and Flat Wire Toroids for Texas Instruments Solar Inverter Designs
WE-PPTI Push-Pull Transformers
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
75031yyyy Datasheet Correction 08/Mar/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
275
