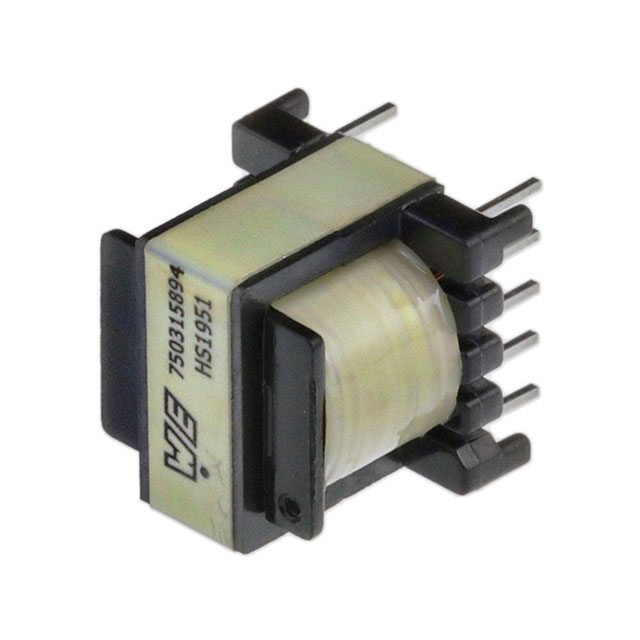

750315894 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750315894
Product Number:
750315894
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
XFMR 2.3MH TH
Datasheet:
Descnt:
For SMPS Transformer 625VAC Isolation 60kHz Through Hole
In Stock
1207
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
-
Packaging
Tray
Part Status
Active
Type
-
Applications
-
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
110 ~ 385V
Voltage - Auxiliary
-
Voltage - Isolation
625VAC
Inductance Frequency
2.3mH 10kHz
Frequency
60kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.580" L x 0.580" W (14.73mm x 14.73mm)
Height - Seated (Max)
0.600" (15.24mm)
Footprint
0.580" L x 0.580" W (14.73mm x 14.73mm)
Style
-
-
Documents & Media
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
75031yyyy Datasheet Correction 08/Mar/2024
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-750315894
Standard Package
121
