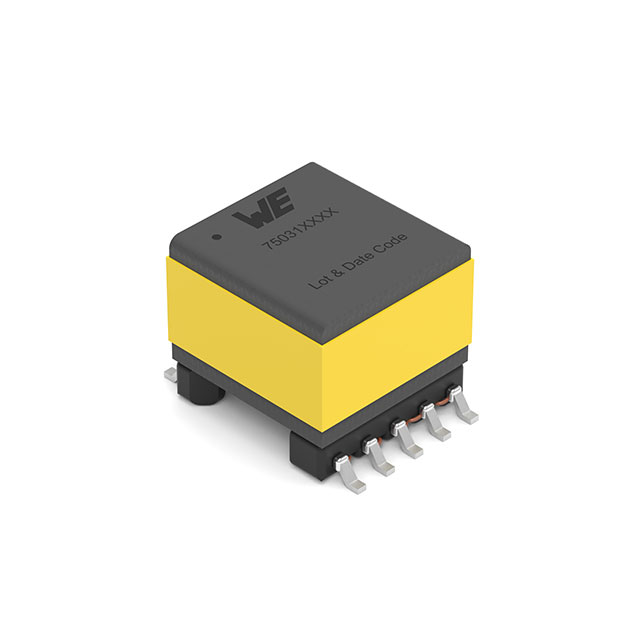

750316022 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750316022
Product Number:
750316022
MFR Standard Lead Time:
21 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 3.3MH SM
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 1500Vrms Isolation 100kHz Surface Mount
In Stock
148
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
MID-OLLT
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
On Semiconductor
Voltage - Primary
140 ~ 380V
Voltage - Auxiliary
20V 20mA
Voltage - Isolation
1500Vrms
Inductance Frequency
3.3mH 100kHz
Frequency
100kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
-
Height - Seated (Max)
0.500" (12.70mm)
Footprint
0.699" L x 0.530" W (17.75mm x 13.46mm)
Style
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
Standard Package
200
