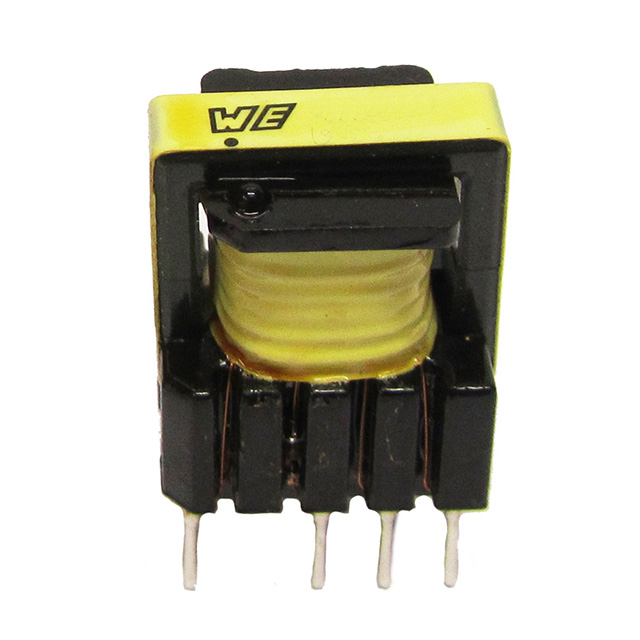

750316878 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750316878
Product Number:
750316878
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV 2.2MH TH
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer Isolation 80kHz Through Hole
In Stock
1274
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
-
Packaging
Tray
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
STMicroelectronics
Voltage - Primary
120 ~ 375VDC
Voltage - Auxiliary
15V 10mA
Voltage - Isolation
-
Inductance Frequency
2.2mH 100kHz
Frequency
80kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.545" L x 0.701" W (13.84mm x 17.81mm)
Height - Seated (Max)
0.888" (22.55mm)
Footprint
0.555" L x 0.456" W (14.10mm x 11.58mm)
Style
Wirewound
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
732-13180
Standard Package
90
