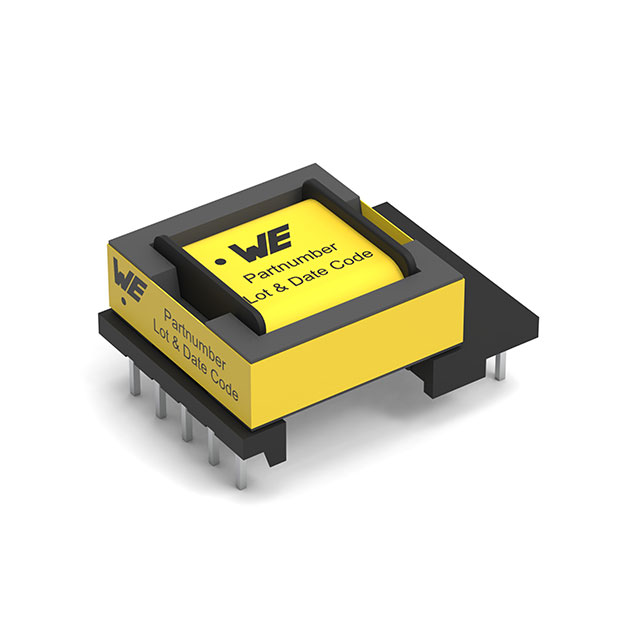

750318383 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750318383
Product Number:
750318383
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV 680UH TH
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 3750V Isolation 66kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
MID-OLTI
Packaging
Tray
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
Texas Instruments
Voltage - Primary
120 ~ 375V
Voltage - Auxiliary
15V 20mA
Voltage - Isolation
3750V
Inductance Frequency
680µH 10kHz
Frequency
66kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
1.142" L x 0.846" W (29.00mm x 21.50mm)
Height - Seated (Max)
0.490" (12.45mm)
Footprint
-
Style
Laminated Core
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-750318383
Standard Package
42
