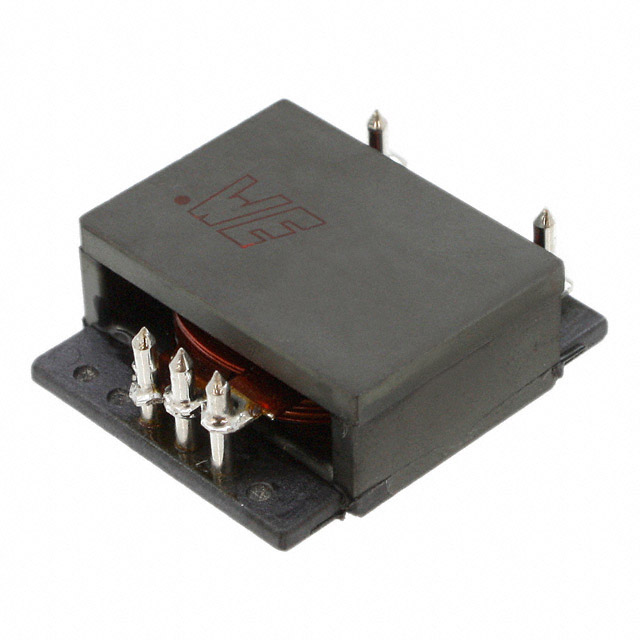

750341143 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750341143
Product Number:
750341143
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
XFMR FWD P-P DC/DC CONV 170UH SM
Datasheet:
Descnt:
Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 500VDC Isolation 200 ~ 700kHz Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FW, MID-PLN
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For DC/DC Converters
Applications
Forward, Push-Pull Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
-
Voltage - Auxiliary
-
Voltage - Isolation
500VDC
Inductance Frequency
170µH 100kHz
Frequency
200 ~ 700kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
1.050" L x 1.154" W (26.67mm x 29.30mm)
Height - Seated (Max)
0.418" (10.62mm)
Footprint
1.050" L x 1.154" W (26.67mm x 29.30mm)
Style
Planar
-
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Datasheet Update 20/Jan/2023
Mult Devs Datasheet Correction 26/Feb/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
Additional Resources
Other Names
Standard Package
115
