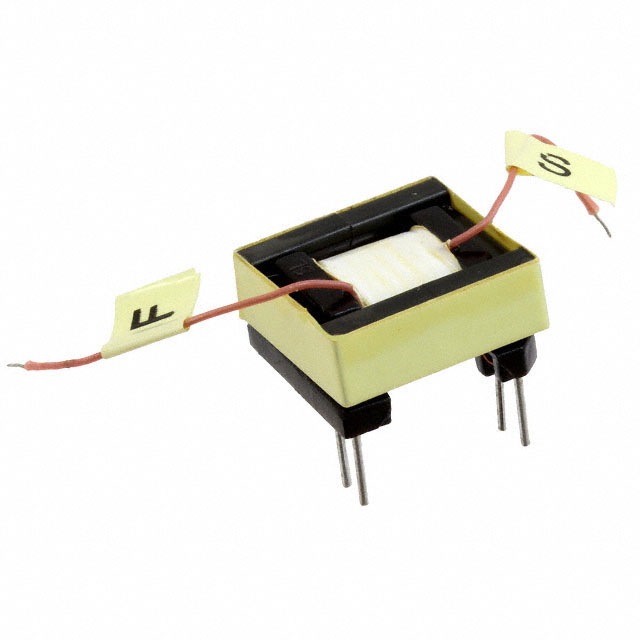

750341547 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750341547
Product Number:
750341547
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV 1.5MH TH
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 3000Vrms Isolation 100kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
-
Packaging
Tray
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
TPS92315
Chipset Manufacturer
Texas Instruments
Voltage - Primary
85 ~ 277V
Voltage - Auxiliary
21V 10mA
Voltage - Isolation
3000Vrms
Inductance Frequency
1.5mH 10kHz
Frequency
100kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.575" L x 0.575" W (14.60mm x 14.60mm)
Height - Seated (Max)
0.340" (8.64mm)
Footprint
0.575" L x 0.575" W (14.60mm x 14.60mm)
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1036
Standard Package
100
