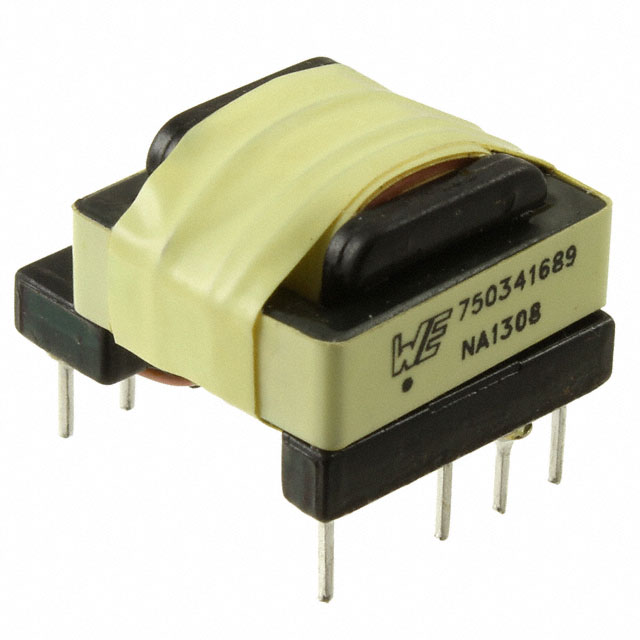

750341689 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750341689
Product Number:
750341689
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 1.6MH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3500Vrms Isolation 65kHz Through Hole
In Stock
307
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
-
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
MP020-5
Chipset Manufacturer
Monolithic Power Systems Inc
Voltage - Primary
90 ~ 375V
Voltage - Auxiliary
12V
Voltage - Isolation
3500Vrms
Inductance Frequency
1.6mH 50kHz
Frequency
65kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.708" L x 0.740" W (18.00mm x 18.80mm)
Height - Seated (Max)
0.556" (14.12mm)
Footprint
0.709" L x 0.740" W (18.00mm x 18.80mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Material 30/Oct/2023
Mult Devs Datasheet Correction 26/Feb/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1043
Standard Package
100
