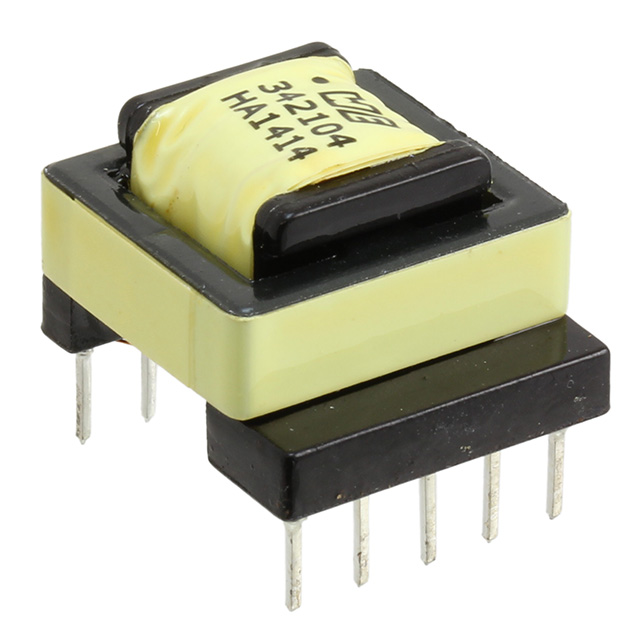

750342104 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750342104
Product Number:
750342104
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 1.3MH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3750Vrms Isolation 80kHz Through Hole
In Stock
183
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FB, MID-OLTI
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
UCC287xx, UCC289xx
Chipset Manufacturer
Texas Instruments
Voltage - Primary
85 ~ 264V
Voltage - Auxiliary
12V 60mA
Voltage - Isolation
3750Vrms
Inductance Frequency
1.3mH 50kHz
Frequency
80kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.689" L x 0.740" W (17.50mm x 18.80mm)
Height - Seated (Max)
0.524" (13.31mm)
Footprint
0.665" L x 0.740" W (16.90mm x 18.80mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
Mult Devs Datasheet Correction 26/Feb/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1121
Standard Package
90
