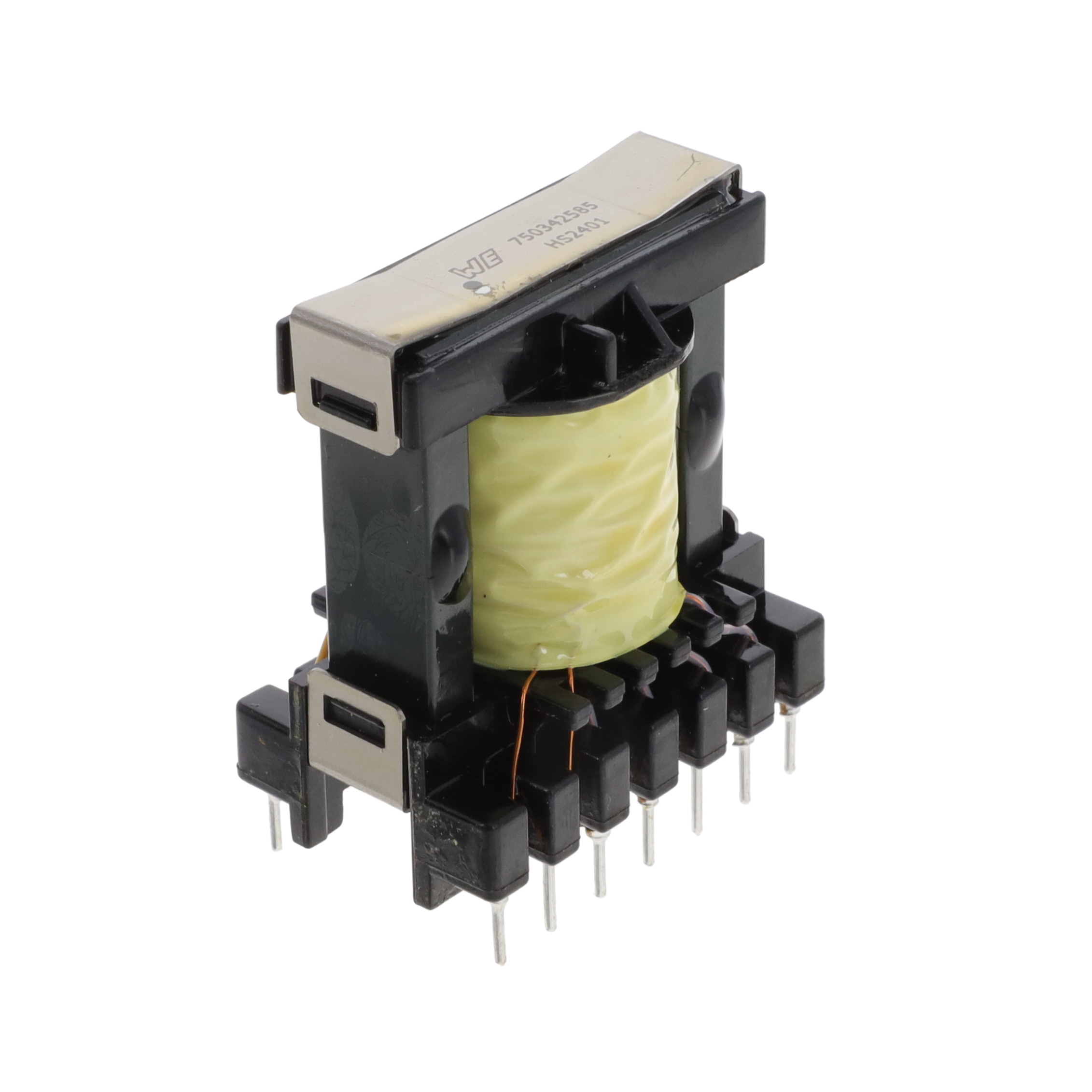

750342585 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750342585
Product Number:
750342585
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 2.5MH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3800Vrms Isolation 68kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
MID-OLTI
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
Texas Instruments
Voltage - Primary
400 ~ 690V
Voltage - Auxiliary
16V 1A
Voltage - Isolation
3800Vrms
Inductance Frequency
2.5mH 50kHz
Frequency
68kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.960" L x 1.400" W (24.38mm x 35.56mm)
Height - Seated (Max)
1.740" (44.20mm)
Footprint
0.960" L x 1.400" W (24.38mm x 35.56mm)
Style
-
-
Documents & Media
Datasheets
PCN Design/Specification
750342585 Material 15/Mar/2024
Mult Devs Datasheet Correction 26/Feb/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
1297-750342585
Standard Package
6
