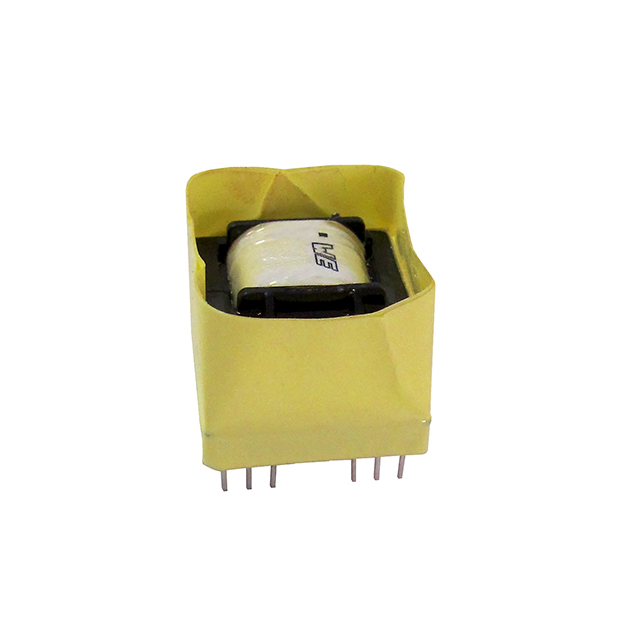

750343107 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750343107
Product Number:
750343107
MFR Standard Lead Time:
22 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 750UH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer Isolation 60kHz Through Hole
In Stock
90
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FB, MID-OLDIA
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
Dialog Semiconductor
Voltage - Primary
120 ~ 375V
Voltage - Auxiliary
9V 100mA
Voltage - Isolation
-
Inductance Frequency
750µH 10kHz
Frequency
60kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
-
Height - Seated (Max)
0.748" (19.00mm)
Footprint
0.917" L x 1.075" W (23.30mm x 27.30mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Material 30/Oct/2023
Mult Devs Datasheet Correction 26/Feb/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1186
Standard Package
30
