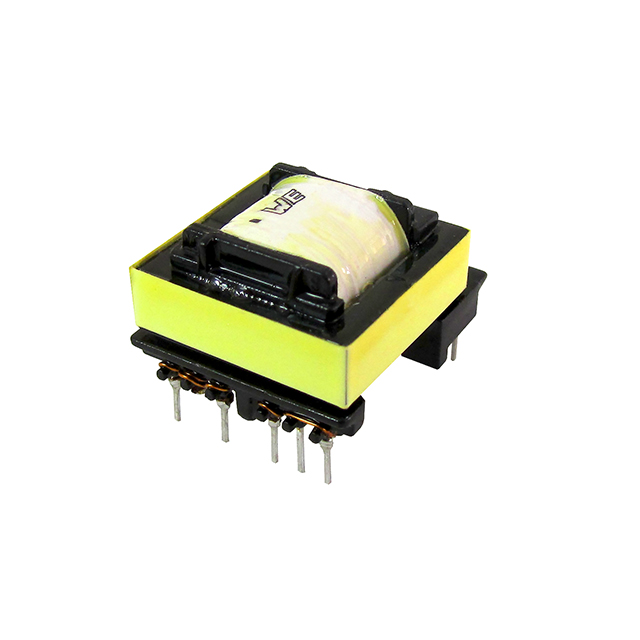

750343109 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750343109
Product Number:
750343109
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 490UH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3000Vrms Isolation 70kHz Through Hole
In Stock
35
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FB, MID-OLDIA
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
Dialog Semiconductor
Voltage - Primary
90 ~ 264V
Voltage - Auxiliary
14V
Voltage - Isolation
3000Vrms
Inductance Frequency
490µH 10kHz
Frequency
70kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.874" L x 1.024" W (22.20mm x 26.00mm)
Height - Seated (Max)
0.635" (16.13mm)
Footprint
0.874" L x 1.024" W (22.20mm x 26.00mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1188
Standard Package
70
