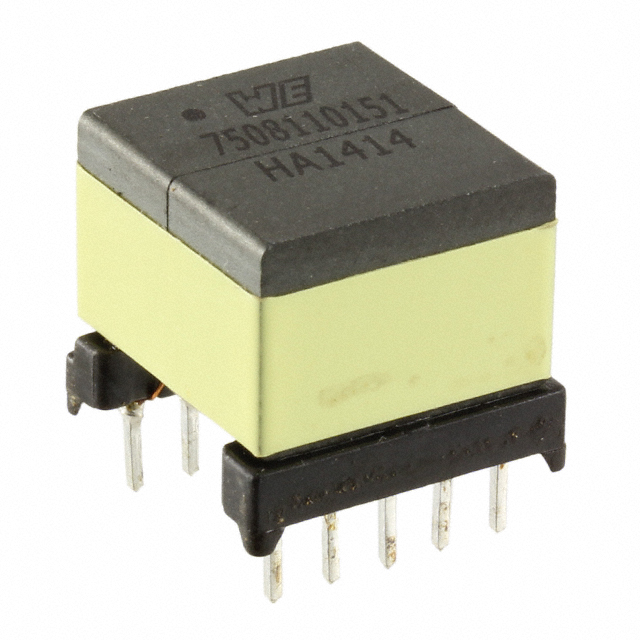

7508110151 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
7508110151
Product Number:
7508110151
MFR Standard Lead Time:
21 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 1.5MH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 4000Vrms Isolation 70kHz Through Hole
In Stock
229
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-UNIT, MID-OLTI
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
UCC287xx, UCC289xx
Chipset Manufacturer
Texas Instruments
Voltage - Primary
120 ~ 375V
Voltage - Auxiliary
15V
Voltage - Isolation
4000Vrms
Inductance Frequency
1.5mH 10kHz
Frequency
70kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.550" L x 0.550" W (13.97mm x 13.97mm)
Height - Seated (Max)
0.505" (12.83mm)
Footprint
0.550" L x 0.550" W (13.97mm x 13.97mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1122
Standard Package
88
