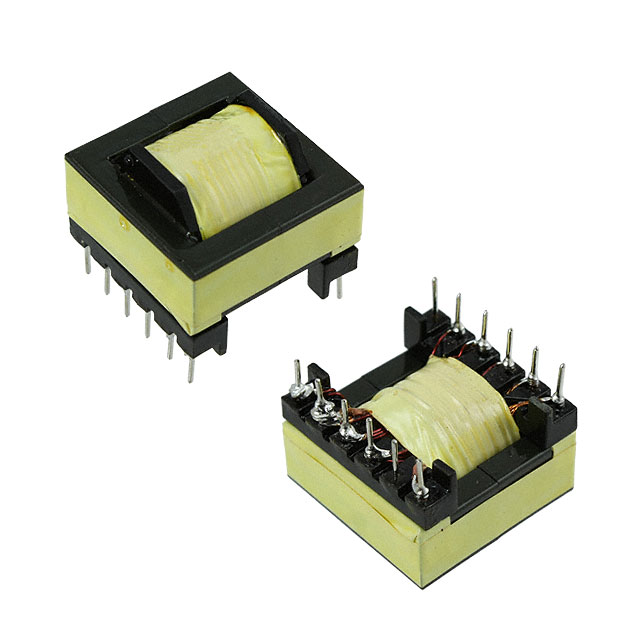

750811630 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750811630
Product Number:
750811630
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
XFMR FLYBCK AC/DC CONV 1.04MH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 4000Vrms Isolation 132kHz Through Hole
In Stock
229
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-UNIT, MID-OLPI
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
TOP258
Chipset Manufacturer
Power Integrations
Voltage - Primary
120 ~ 375V
Voltage - Auxiliary
-
Voltage - Isolation
4000Vrms
Inductance Frequency
1.04mH 10kHz
Frequency
132kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
1.220" L x 1.220" W (31.00mm x 31.00mm)
Height - Seated (Max)
0.989" (25.12mm)
Footprint
1.220" L x 1.220" W (31.00mm x 31.00mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
75081yyyy Bobbin Material 06/Jun/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
732-2251
Standard Package
42
