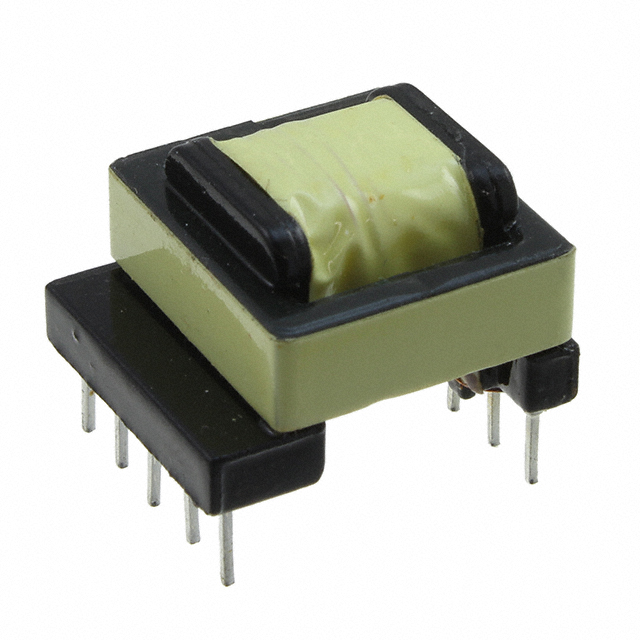

750813049 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750813049
Product Number:
750813049
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR LED DR DC/DC CONV 1.3MH TH
Datasheet:
Descnt:
LED Drivers, AC/DC SMPS For For DC/DC Converters SMPS Transformer 3000Vrms Isolation 70kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-UNIT
Packaging
Tray
Part Status
Obsolete
Type
For DC/DC Converters
Applications
LED Drivers, AC/DC SMPS
Intended Chipset
LM3447
Chipset Manufacturer
Texas Instruments
Voltage - Primary
127 ~ 191V
Voltage - Auxiliary
15V 20mA
Voltage - Isolation
3000Vrms
Inductance Frequency
1.3mH 70kHz
Frequency
70kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.665" L x 0.740" W (16.90mm x 18.80mm)
Height - Seated (Max)
0.529" (13.44mm)
Footprint
0.665" L x 0.740" W (16.90mm x 18.80mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1058
Standard Package
90
