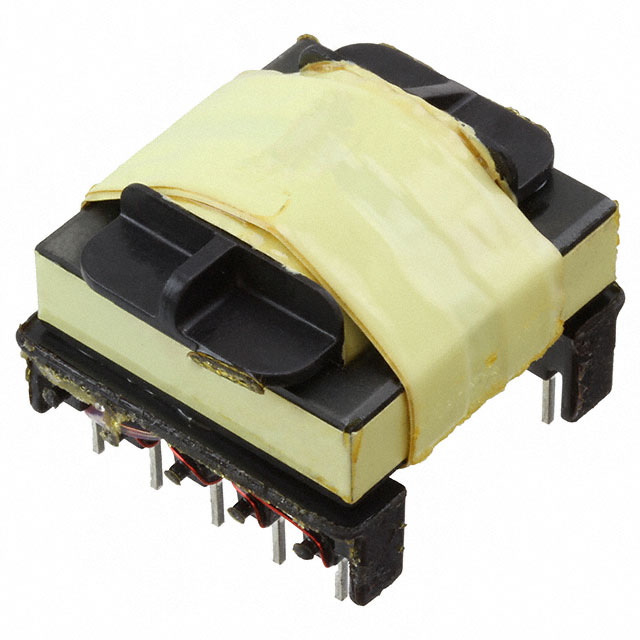

750813550 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750813550
Product Number:
750813550
MFR Standard Lead Time:
99 Weeks
Package/Case:
Detailed Description:
XFMR LED DR AC/DC CONV 1.02MH TH
Datasheet:
Descnt:
LED Drivers, AC/DC SMPS For For AC/DC Converters SMPS Transformer 3000Vrms Isolation 55 ~ 85kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-UNIT, MID-OLTI
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
LED Drivers, AC/DC SMPS
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
120 ~ 191V
Voltage - Auxiliary
12.5V 80mA
Voltage - Isolation
3000Vrms
Inductance Frequency
1.02mH 10kHz
Frequency
55 ~ 85kHz
Operating Temperature
-
Mounting Type
Through Hole
Size / Dimension
1.125" L x 1.150" W (28.58mm x 29.21mm)
Height - Seated (Max)
0.905" (22.99mm)
Footprint
1.125" L x 1.150" W (28.58mm x 29.21mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1059
Standard Package
16
