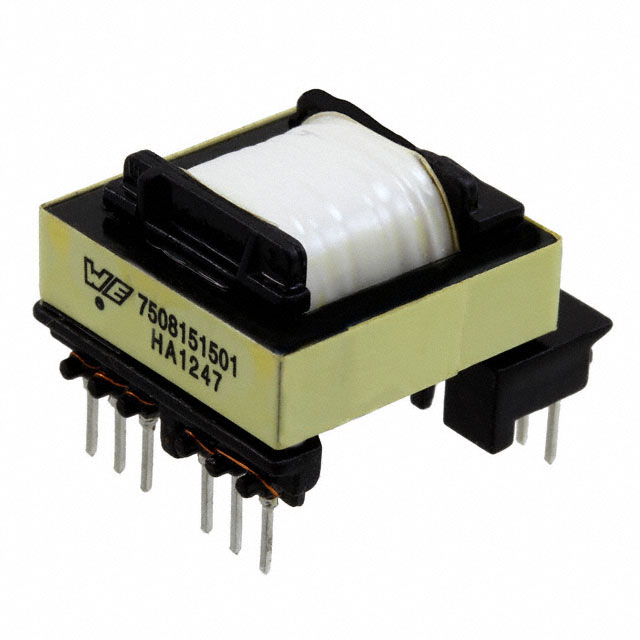

7508151501 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
7508151501
Product Number:
7508151501
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
XFMR FLYBCK DC/DC CONV 1.78MH TH
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 4500Vrms Isolation 70kHz Through Hole
In Stock
94
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-UNIT, MID-OLTI
Packaging
Tray
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
UCC287xx, UCC289xx
Chipset Manufacturer
Texas Instruments
Voltage - Primary
255 ~ 275V
Voltage - Auxiliary
14V 20mA
Voltage - Isolation
4500Vrms
Inductance Frequency
1.78mH 70kHz
Frequency
70kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
-
Height - Seated (Max)
0.438" (11.13mm)
Footprint
0.543" L x 0.941" W (13.80mm x 23.90mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1069
Standard Package
70
