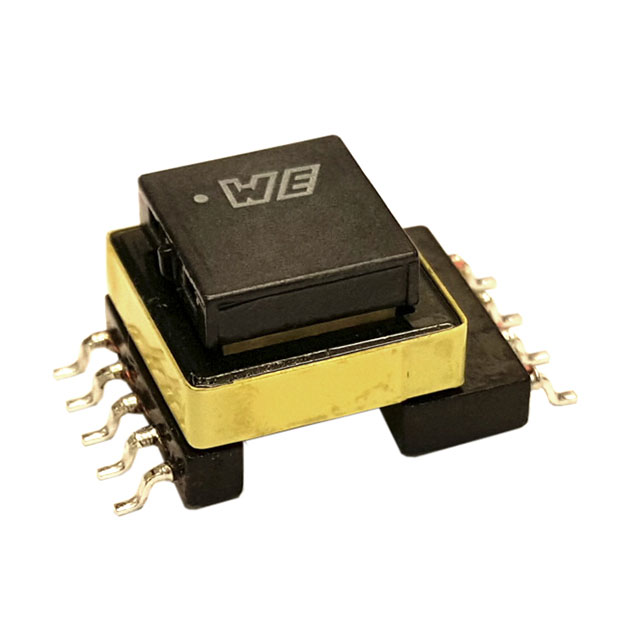

7508170310 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
7508170310
Product Number:
7508170310
MFR Standard Lead Time:
99 Weeks
Package/Case:
Detailed Description:
XFMR FLYBCK AC/DC CONV 1.99MH SM
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3000Vrms Isolation 50kHz Surface Mount
In Stock
6
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-UNIT, MID-OLEE
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
78 ~ 375V
Voltage - Auxiliary
16V 50mA
Voltage - Isolation
3000Vrms
Inductance Frequency
1.99mH 10kHz
Frequency
50kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
-
Height - Seated (Max)
0.438" (11.13mm)
Footprint
0.543" L x 0.941" W (13.80mm x 23.90mm)
Documents & Media
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
Mult Devs Material 08/Nov/2022
Product Drawings
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
175
