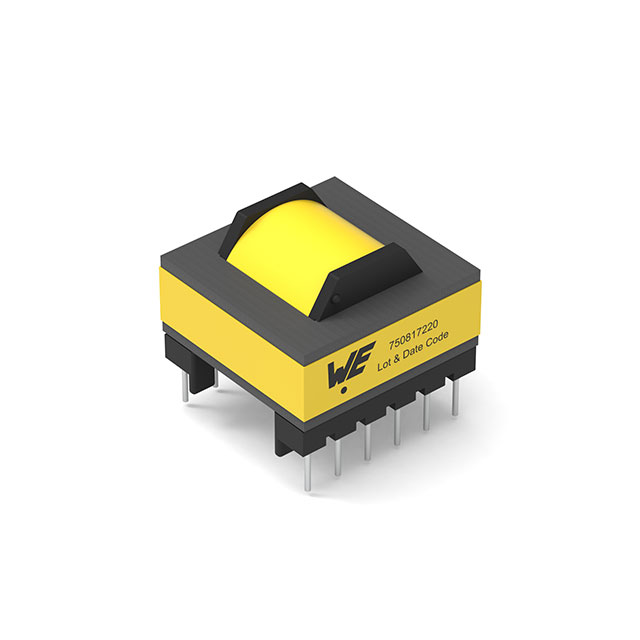

750817220 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750817220
Product Number:
750817220
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 1MH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 5500Vrms Isolation 60kHz Through Hole
In Stock
37
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
MID-OLLT
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
On Semiconductor
Voltage - Primary
90 ~ 650V
Voltage - Auxiliary
28V 20mA
Voltage - Isolation
5500Vrms
Inductance Frequency
1mH 10KHz
Frequency
60kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
1.220" L x 1.220" W (31.00mm x 31.00mm)
Height - Seated (Max)
0.984" (25.00mm)
Footprint
-
Style
Laminated Core
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
1297-750817220
Standard Package
42
