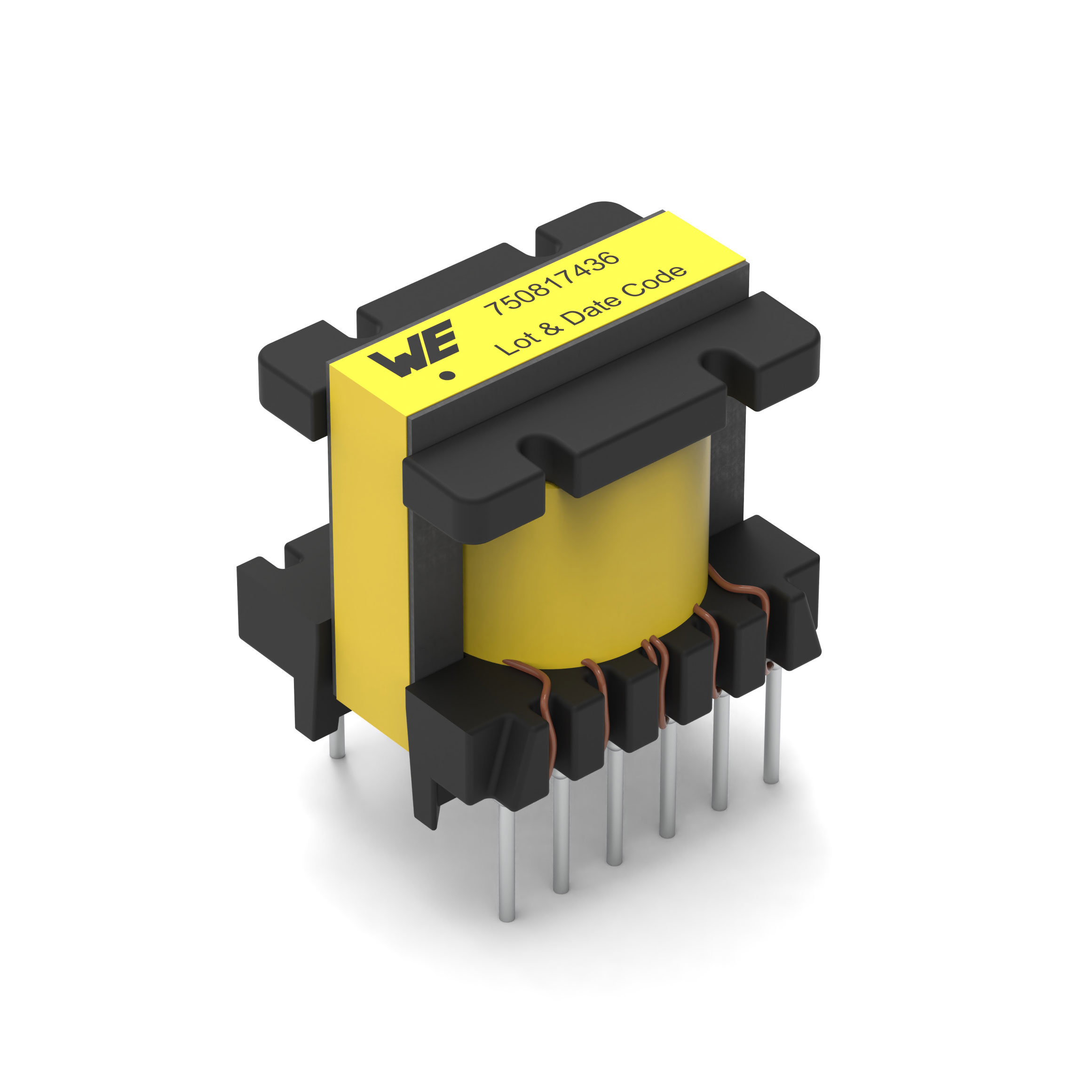

750817436 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750817436
Product Number:
750817436
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 2.3MH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3000V Isolation 115kHz Through Hole
In Stock
78
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
MID-OLSTM
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
STMicroelectronics
Voltage - Primary
375 ~ 420V
Voltage - Auxiliary
15V 250mA
Voltage - Isolation
3000V
Inductance Frequency
2.3mH 10kHz
Frequency
115kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.728" L x 0.650" W (18.50mm x 16.50mm)
Height - Seated (Max)
0.740" (18.80mm)
Footprint
-
Style
Laminated Core
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-750817436
Standard Package
90
