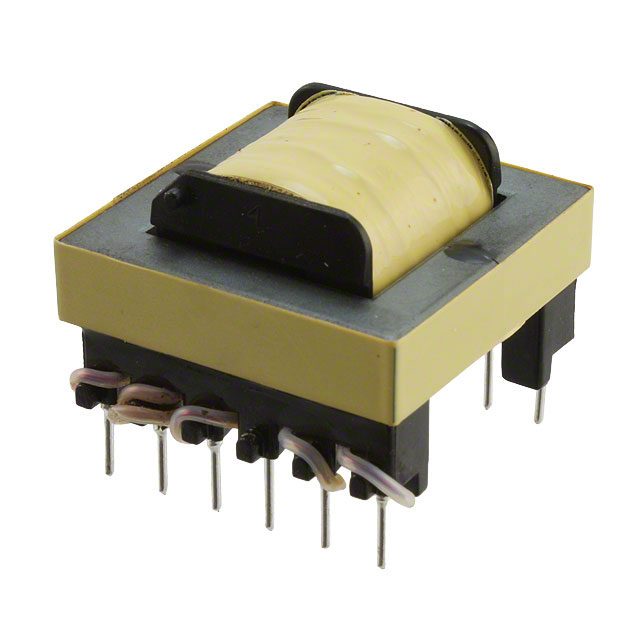

750845240 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750845240
Product Number:
750845240
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 2.6MH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3600Vrms Isolation 47kHz Through Hole
In Stock
104
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE UNIT, MID-OLIFX
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
BCR450, TDA4863
Chipset Manufacturer
Infineon Technologies
Voltage - Primary
280 ~ 380V
Voltage - Auxiliary
15V 20mA
Voltage - Isolation
3600Vrms
Inductance Frequency
2.6mH 10kHz
Frequency
47kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
1.240" L x 1.386" W (31.50mm x 35.20mm)
Height - Seated (Max)
0.950" (24.13mm)
Footprint
1.240" L x 1.386" W (31.50mm x 35.20mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
Mult Devs Material 14/Mar/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
732-2909
Standard Package
65
