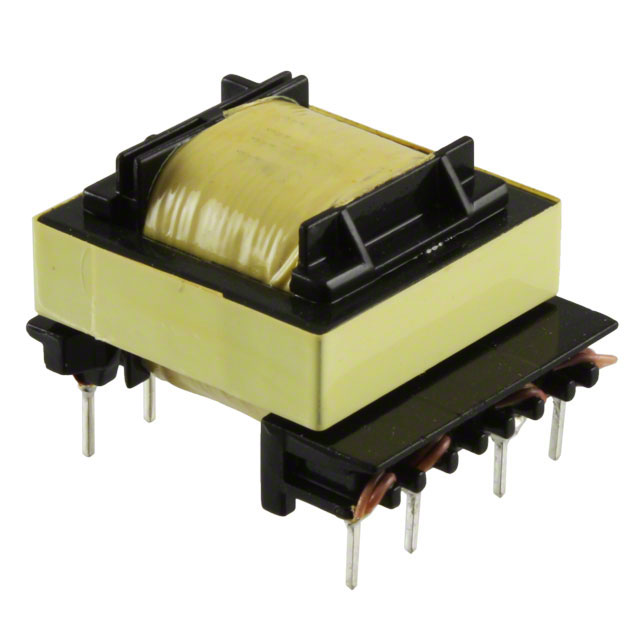

750871111 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750871111
Product Number:
750871111
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 1.7MH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 4000Vrms Isolation 60kHz Through Hole
In Stock
179
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-UNIT, MID-OLSTM
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
VIPER27L
Chipset Manufacturer
STMicroelectronics
Voltage - Primary
120 ~ 385V
Voltage - Auxiliary
12V 10mA
Voltage - Isolation
4000Vrms
Inductance Frequency
1.7mH 10kHz
Frequency
60kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.827" L x 0.984" W (21.00mm x 25.00mm)
Height - Seated (Max)
0.635" (16.13mm)
Footprint
0.827" L x 0.984" W (21.00mm x 25.00mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Bobbin Material 29/Sep/2023
Mult Devs Material 25/Sep/2023
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
732-2259
Standard Package
70
