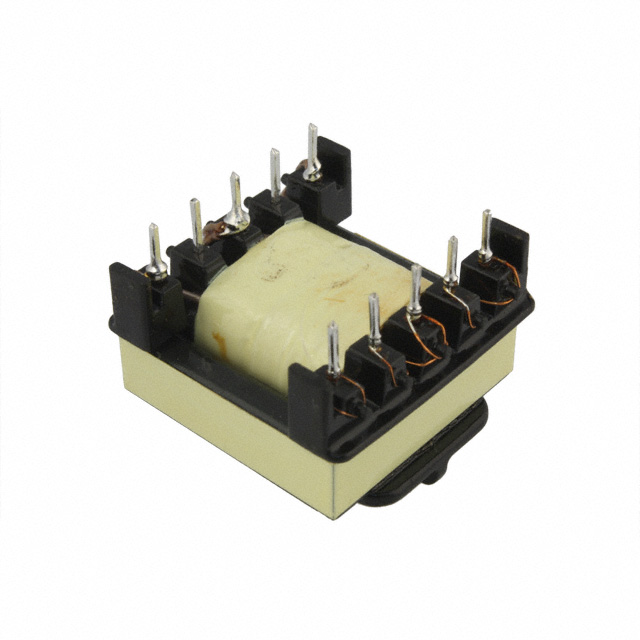

760871631 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
760871631
Product Number:
760871631
MFR Standard Lead Time:
34 Weeks
Package/Case:
Detailed Description:
XFMR LED DR AC/DC CONV 2.2MH TH
Datasheet:
Descnt:
LED Drivers, AC/DC SMPS For For AC/DC Converters SMPS Transformer 1500Vrms Isolation 100kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-UNIT
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
LED Drivers, AC/DC SMPS
Intended Chipset
TEA1733
Chipset Manufacturer
NXP Semiconductors
Voltage - Primary
120 ~ 385V
Voltage - Auxiliary
12V 10mA
Voltage - Isolation
1500Vrms
Inductance Frequency
2.2mH 10kHz
Frequency
100kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
1.150" L x 1.100" W (29.21mm x 27.94mm)
Height - Seated (Max)
0.850" (21.59mm)
Footprint
1.150" L x 1.100" W (29.21mm x 27.94mm)
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
732-2242
Standard Package
56
