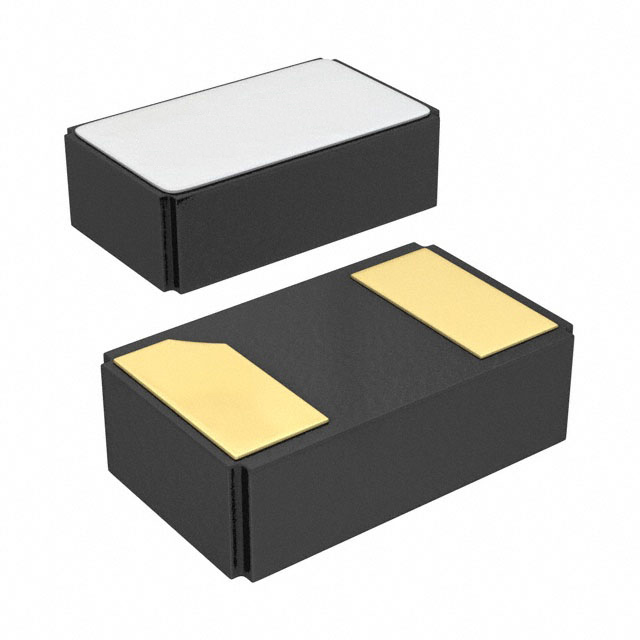

9HT11-32.768KDZB-T TXC CORPORATION
Favorite
Compare
Manufacturer:
TXC CORPORATION
MFR Product Number:
9HT11-32.768KDZB-T
Product Number:
9HT11-32-768KDZB-T
MFR Standard Lead Time:
20 Weeks
Package/Case:
2-SMD, No Lead
Detailed Description:
CRYSTAL 32.7680KHZ 6PF SMD
Datasheet:
Descnt:
32.768 kHz ±20ppm Crystal 6pF 90 kOhms 2-SMD, No Lead
In Stock
17101
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
TXC CORPORATION
Series
9HT11
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
kHz Crystal (Tuning Fork)
Frequency
32.768 kHz
Frequency Stability
-
Frequency Tolerance
±20ppm
Load Capacitance
6pF
ESR (Equivalent Series Resistance)
90 kOhms
Operating Mode
Fundamental
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
2-SMD, No Lead
Size / Dimension
0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max)
0.024" (0.60mm)
-
Documents & Media
Datasheets
9HT11 Series Datasheet
9HT11 Series Datasheet
HTML Datasheet
9HT11 Series Datasheet
Quartz Crystal Part Number Guide, KHz
9HT11 Series Datasheet
Product Drawings
9HT11-32.768KHz Side
9HT11-32.768KHz Top
9HT11-32.768KHz Bottom
Part Numbering Guide
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.60.0010
-
Additional Resources
Other Names
Standard Package
3,000
