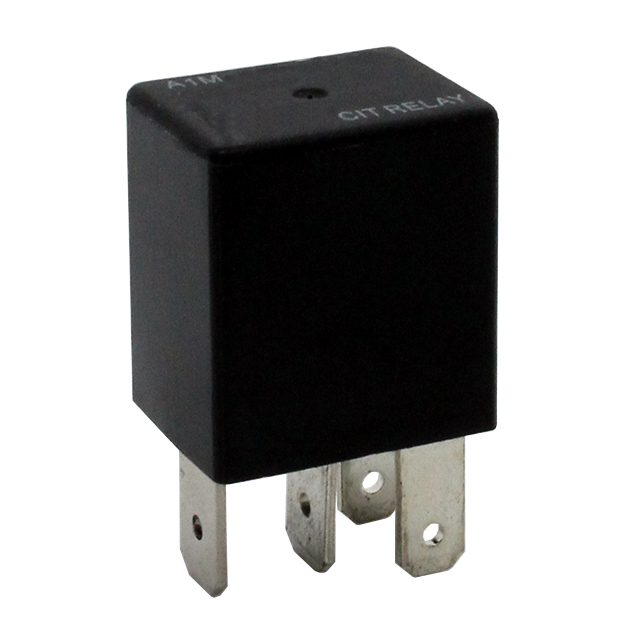

A1M1CSQ24VDCD CIT Relay and Switch
Favorite
Compare
Manufacturer:
CIT Relay and Switch
MFR Product Number:
A1M1CSQ24VDCD
Product Number:
A1M1CSQ24VDCD
MFR Standard Lead Time:
14 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPDT 40A 24V
Datasheet:
Descnt:
In Stock
1000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
CIT Relay and Switch
Series
A1M
Packaging
Tube
Part Status
Active
Coil Type
Non Latching
Coil Current
75 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Contact Rating (Current)
40 A
Switching Voltage
28VDC - Max
Must Operate Voltage
14.4 VDC
Must Release Voltage
2.4 VDC
Operate Time
10 ms
Release Time
10 ms
Features
Sealed - Fully
Mounting Type
Socketable
Termination Style
Plug In, Quick Connect - Multiple Sizes
Operating Temperature
-40°C ~ 85°C
Contact Material
Silver Tin Oxide (AgSnO)
Coil Power
1.8W
Coil Resistance
320 Ohms
-
Documents & Media
Datasheets
A1M
A Series Relays
Environmental Information
CIT Relay and Switch REACH
CIT Relay and Switch RoHS
CA Proposition
CIT Relay and Switch CA Prop65
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.41.0050
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
2449-A1M1CSQ24VDCD
Standard Package
25
