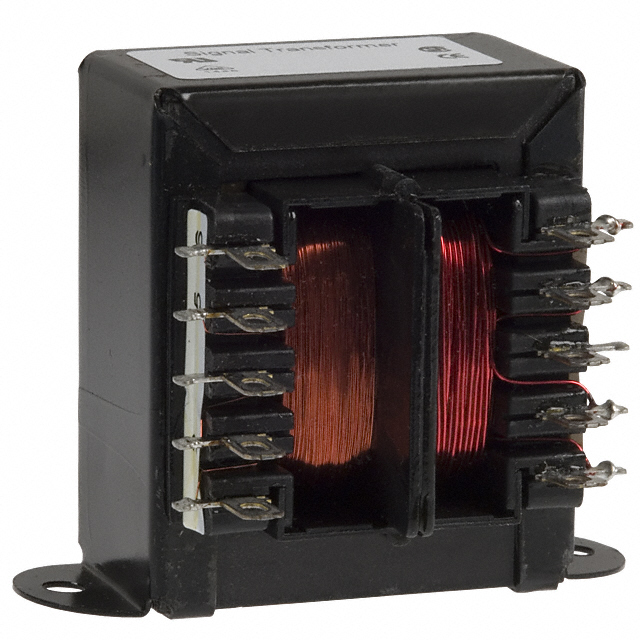

A41-25-230 Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
A41-25-230
Product Number:
A41-25-230
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 25VA CHAS MT
Datasheet:
Descnt:
In Stock
261
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
All-4-One™
Packaging
Box
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 115V, Series 230V
Current - Output (Max)
Parallel 220mA, Series 110mA
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
25VA
Mounting Type
Chassis Mount
Termination Style
Solder, Quick Connect
Size / Dimension
71.40mm L x 54.40mm W
Height - Seated (Max)
58.70mm
Voltage - Isolation
4000Vrms
Weight
1.3 lbs (589.7 g)
Documents & Media
Datasheets
Video File
What are Transformers? How Do They Work? - Another Teaching Moment
How to Connect Series and Parallel Transformers
Environmental Information
Signal Transformer REACH
RoHS EU Declaration Signal Transformer
RoHS EU Declaration Signal Transformer
Product Drawings
A41 Series Schematic
A41 Series
A41 Series Bottom Style C
A41 Series Bottom Style B
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
20
