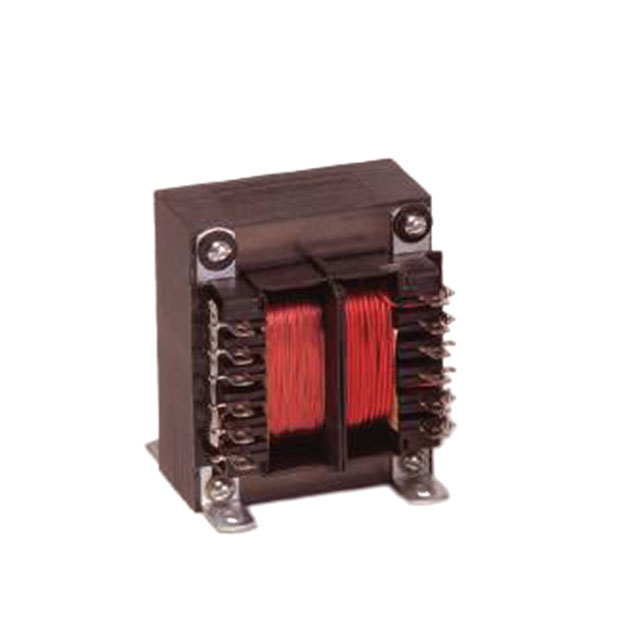

A41-80-20 Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
A41-80-20
Product Number:
A41-80-20
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 80VA CHAS MT
Datasheet:
Descnt:
In Stock
59
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
All-4-One™
Packaging
Box
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 10V, Series 20V
Current - Output (Max)
Parallel 8A, Series 4A
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
80VA
Mounting Type
Chassis Mount
Termination Style
Solder, Quick Connect
Size / Dimension
63.50mm L x 64.30mm W
Height - Seated (Max)
76.20mm
Voltage - Isolation
4000Vrms
Weight
2.8 lbs (1.3 kg)
Documents & Media
Datasheets
Video File
What are Transformers? How Do They Work? - Another Teaching Moment
How to Connect Series and Parallel Transformers
Environmental Information
Signal Transformer REACH
RoHS EU Declaration Signal Transformer
RoHS EU Declaration Signal Transformer
PCN Design/Specification
Tape Color 20/Jan/2018
Dimensional Change 09/SEP/2022
Product Drawings
A41 Series Bottom Style C
A41 Series Schematic
A41 Series
A41 Series Bottom Style B
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
Additional Resources
Other Names
595-1285
Standard Package
1
