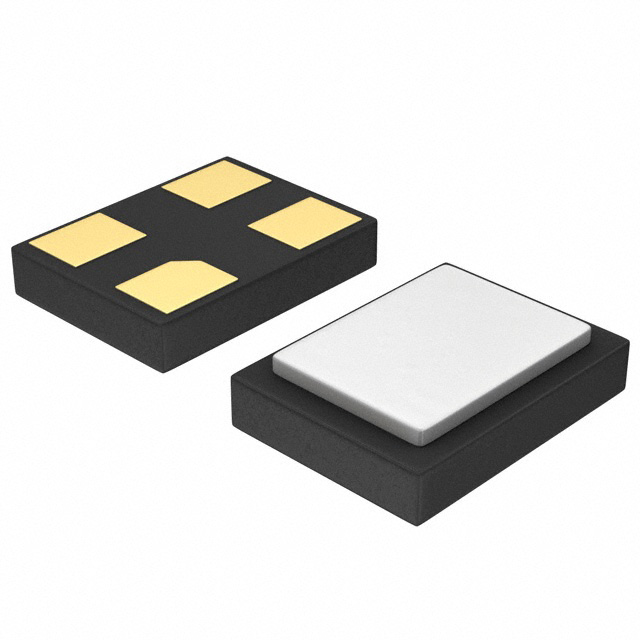

ABM12-36.000MHZ-B2X-T3 Abracon LLC
Favorite
Compare
Manufacturer:
Abracon LLC
MFR Product Number:
ABM12-36.000MHZ-B2X-T3
Product Number:
ABM12-36-000MHZ-B2X-T3
MFR Standard Lead Time:
29 Weeks
Package/Case:
4-SMD, No Lead
Detailed Description:
CRYSTAL 36.0000MHZ 8PF SMD
Datasheet:
Descnt:
36 MHz ±20ppm Crystal 8pF 200 Ohms 4-SMD, No Lead
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Abracon LLC
Series
ABM12
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
MHz Crystal
Frequency
36 MHz
Frequency Stability
±20ppm
Frequency Tolerance
±20ppm
Load Capacitance
8pF
ESR (Equivalent Series Resistance)
200 Ohms
Operating Mode
Fundamental
Operating Temperature
-20°C ~ 70°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
4-SMD, No Lead
Size / Dimension
0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max)
0.018" (0.45mm)
-
Documents & Media
Product Drawings
ABM12 Series Circuit
ABM12 Series Top
ABM12 Series Bottom
ABM12 Drawing
ABM12 Series Side
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.60.0060
-
Additional Resources
Other Names
Standard Package
3,000
