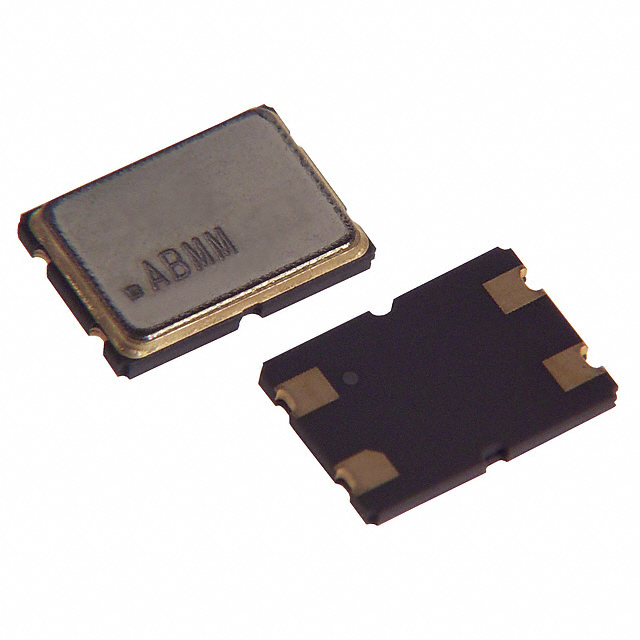

ABMM-16.000MHZ-12-R100-N2-X-T Abracon LLC
Favorite
Compare
Manufacturer:
Abracon LLC
MFR Product Number:
ABMM-16.000MHZ-12-R100-N2-X-T
Product Number:
ABMM-16-000MHZ-12-R100-N2-X-T
MFR Standard Lead Time:
15 Weeks
Package/Case:
4-SMD, No Lead
Detailed Description:
CRYSTAL 16.0000MHZ 12PF SMD
Datasheet:
Descnt:
16 MHz ±20ppm Crystal 12pF 100 Ohms 4-SMD, No Lead
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Abracon LLC
Series
ABMM
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
MHz Crystal
Frequency
16 MHz
Frequency Stability
±20ppm
Frequency Tolerance
±20ppm
Load Capacitance
12pF
ESR (Equivalent Series Resistance)
100 Ohms
Operating Mode
Fundamental
Operating Temperature
-30°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
4-SMD, No Lead
Size / Dimension
0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)
0.051" (1.30mm)
-
Documents & Media
Product Drawings
ABMM Series Top
ABMM Drawing
ABMM Series Circuit
ABMM Series Footprint
ABMM Series Side
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.60.0050
-
Additional Resources
Other Names
Standard Package
1,000
