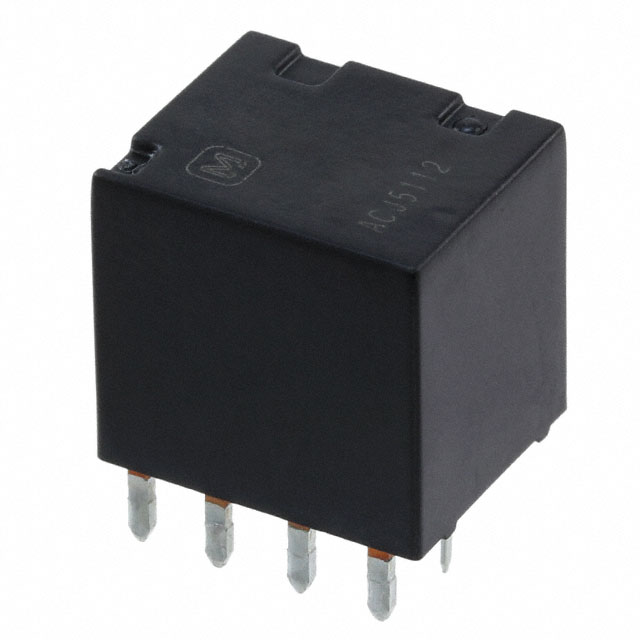

ACJ5112 Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
ACJ5112
Product Number:
ACJ5112
MFR Standard Lead Time:
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPDTX2 20A 12V
Datasheet:
Descnt:
In Stock
3120
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
ACJ
Packaging
Tube
Part Status
Last Time Buy
Coil Type
Non Latching
Coil Current
66.7 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C) x 2
Contact Rating (Current)
20 A
Switching Voltage
14VDC - Nom
Must Operate Voltage
6.5 VDC
Must Release Voltage
0.8 VDC
Operate Time
10 ms
Release Time
10 ms
Features
Sealed - Fully
Mounting Type
Through Hole
Termination Style
PC Pin
Operating Temperature
-40°C ~ 85°C
Contact Material
Silver Alloy, Cadmium Free
Coil Power
800mW
Coil Resistance
180 Ohms
Base Product Number
ACJ511
Documents & Media
Datasheets
Video File
Relay Basics - Another Teaching Moment | DigiKey Electronics
How to Choose a Relay - Another Teaching Moment
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8536.41.0050
Additional Resources
Other Names
Standard Package
35
