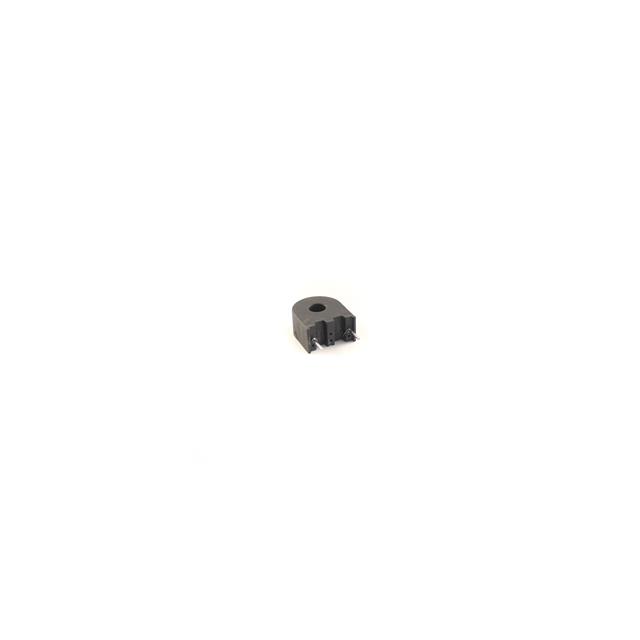

ACT05T02-30-040 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
ACT05T02-30-040
Product Number:
ACT05T02-30-040
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:750 30A TH
Datasheet:
Descnt:
30 A 1:750 Current Sense Transformer 20kHz ~ 50kHz 35Ohm 1.125 H Through Hole
In Stock
13
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Box
Part Status
Active
Frequency Range
20kHz ~ 50kHz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
30 A
Inductance
1.125 H
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:750
Current Ratio
750:1
DC Resistance (DCR)
35Ohm
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.709" L x 0.394" W (18.00mm x 10.00mm)
Height - Seated (Max)
0.827" (21.00mm)
Termination Style
PC Pin
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
3475-ACT05T02-30-040
Standard Package
2
