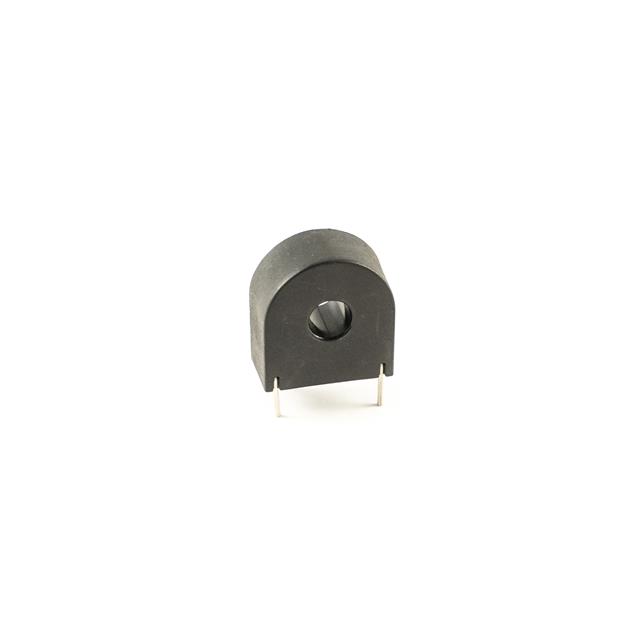

ACT07-20-008-02-100 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
ACT07-20-008-02-100
Product Number:
ACT07-20-008-02-100
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:2500 20A TH
Datasheet:
Descnt:
20 A 1:2500 Current Sense Transformer 50Hz ~ 400Hz Through Hole
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Box
Part Status
Active
Frequency Range
50Hz ~ 400Hz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
20 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:2500
Current Ratio
-
DC Resistance (DCR)
-
Ratings
-
Mounting Type
Through Hole
Size / Dimension
1.476" L x 0.551" W (37.50mm x 14.00mm)
Height - Seated (Max)
1.535" (39.00mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
3475-ACT07-20-008-02-100
Standard Package
2
