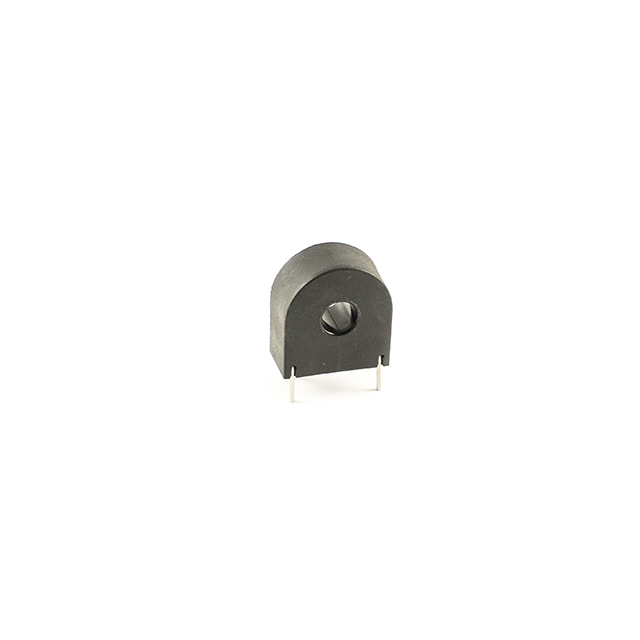

ACT07-4319 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
ACT07-4319
Product Number:
ACT07-4319
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:2500 30A TH
Datasheet:
Descnt:
30 A 1:2500 Current Sense Transformer 50Hz ~ 60Hz 155Ohm Through Hole
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Tray
Part Status
Active
Frequency Range
50Hz ~ 60Hz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
30 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:2500
Current Ratio
2500:1
DC Resistance (DCR)
155Ohm
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.925" L x 0.453" W (23.50mm x 11.50mm)
Height - Seated (Max)
0.984" (25.00mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
3475-ACT07-4319
Standard Package
1
