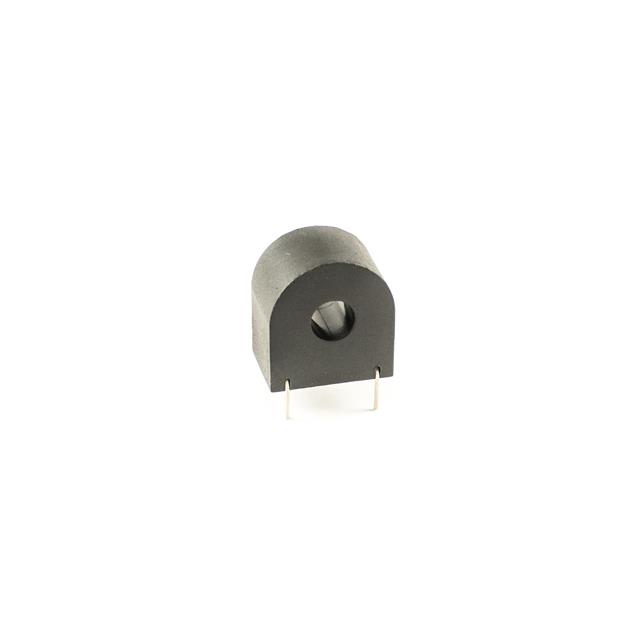

ACT09-50-020-01-100 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
ACT09-50-020-01-100
Product Number:
ACT09-50-020-01-100
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:2500 50A TH
Datasheet:
Descnt:
50 A 1:2500 Current Sense Transformer 50Hz ~ 400Hz Through Hole
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Box
Part Status
Active
Frequency Range
50Hz ~ 400Hz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
50 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:2500
Current Ratio
-
DC Resistance (DCR)
-
Ratings
-
Mounting Type
Through Hole
Size / Dimension
1.024" L x 0.670" W (26.00mm x 17.00mm)
Height - Seated (Max)
1.102" (28.00mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
3475-ACT09-50-020-01-100
Standard Package
2
