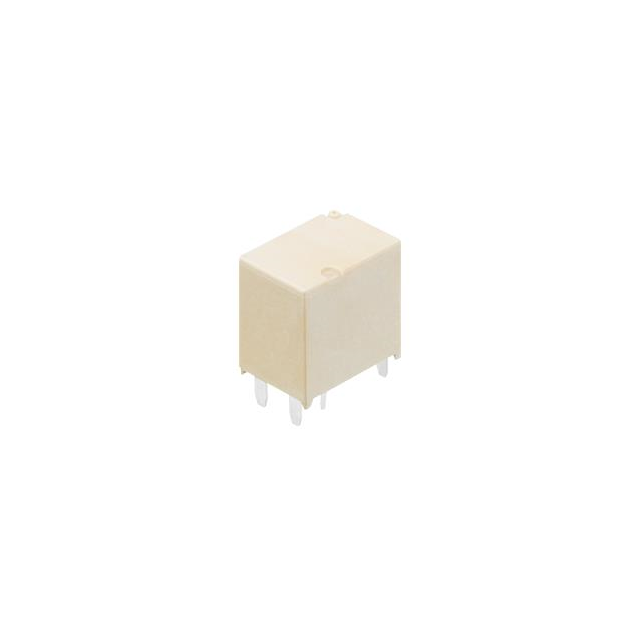

ACTBPDR4V Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
ACTBPDR4V
Product Number:
ACTBPDR4V
MFR Standard Lead Time:
16 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPST 30A 12V
Datasheet:
Descnt:
In Stock
982
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
ACTBP
Packaging
Tube
Part Status
Active
Coil Type
Non Latching
Coil Current
40 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Contact Rating (Current)
30 A
Switching Voltage
14VDC - Nom
Must Operate Voltage
7 VDC
Must Release Voltage
0.5 VDC
Operate Time
10 ms
Release Time
10 ms
Features
Sealed - Flux Protection
Mounting Type
Through Hole
Termination Style
PC Pin
Operating Temperature
-40°C ~ 110°C
Contact Material
Silver Alloy
Coil Power
480mW
Coil Resistance
300 Ohms
Base Product Number
ACTBP
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.41.0050
-
Additional Resources
Other Names
255-ACTBPDR4V
Standard Package
50
