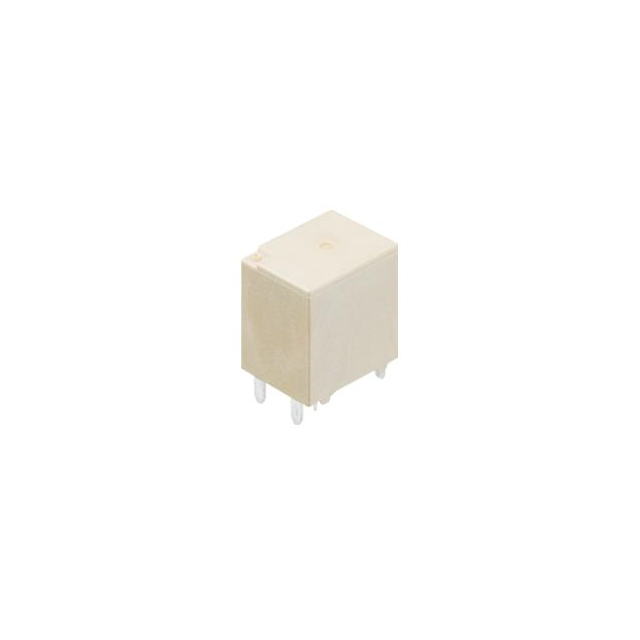

ACTL3CR3V Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
ACTL3CR3V
Product Number:
ACTL3CR3V
MFR Standard Lead Time:
16 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPSTX2 40A 12V
Datasheet:
Descnt:
In Stock
1292
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
ACTL
Packaging
Tube
Part Status
Active
Coil Type
Non Latching
Coil Current
53.3 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (DM) (1 Form U)
Contact Rating (Current)
40 A
Switching Voltage
14VDC - Nom
Must Operate Voltage
6.5 VDC
Must Release Voltage
0.5 VDC
Operate Time
10 ms
Release Time
10 ms
Features
Sealed - Flux Protection
Mounting Type
Through Hole
Termination Style
PC Pin
Operating Temperature
-40°C ~ 110°C
Contact Material
Silver Alloy
Coil Power
640mW
Coil Resistance
225 Ohms
Base Product Number
ACTL3C
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8536.41.0050
Additional Resources
Other Names
255-ACTL3CR3V
Standard Package
50
