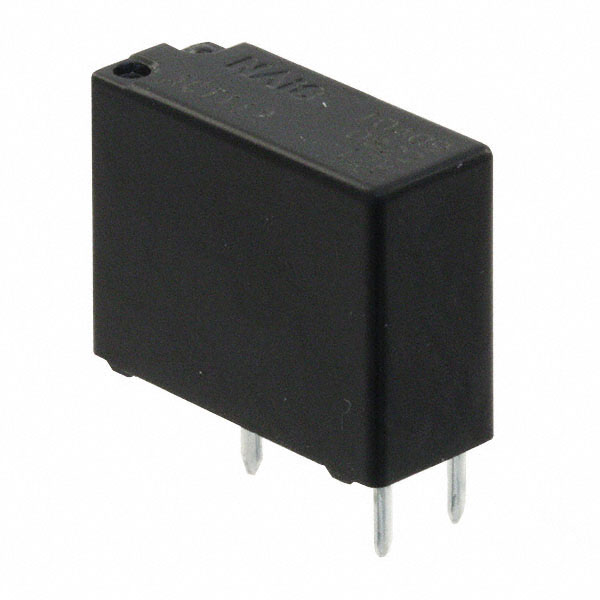

ACTP112 Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
ACTP112
Product Number:
ACTP112
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPDT 30A 12V
Datasheet:
Descnt:
In Stock
1192
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
ACTP
Packaging
Tube
Part Status
Active
Coil Type
Non Latching
Coil Current
83.3 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Contact Rating (Current)
30 A
Switching Voltage
14VDC - Nom
Must Operate Voltage
7.2 VDC
Must Release Voltage
1 VDC
Operate Time
10 ms
Release Time
10 ms
Features
-
Mounting Type
Through Hole
Termination Style
PC Pin
Operating Temperature
-40°C ~ 85°C
Contact Material
Silver Alloy, Cadmium Free
Coil Power
1W
Coil Resistance
144 Ohms
Base Product Number
ACTP11
Documents & Media
Datasheets
Video File
Relay Basics - Another Teaching Moment | DigiKey Electronics
How to Choose a Relay - Another Teaching Moment
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.41.0050
-
Additional Resources
Other Names
Standard Package
30
