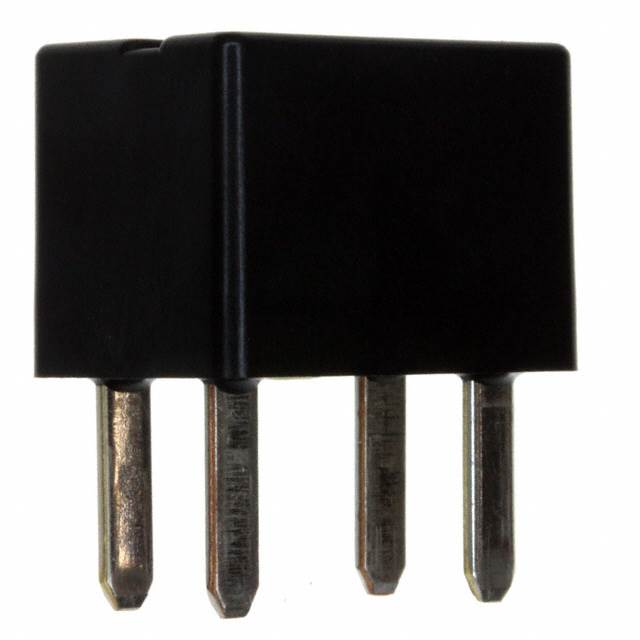

ACV32012 Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
ACV32012
Product Number:
ACV32012
MFR Standard Lead Time:
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPST 20A 12V
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
ACV
Packaging
Tube
Part Status
Obsolete
Coil Type
Non Latching
Coil Current
67 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Contact Rating (Current)
20 A
Switching Voltage
14VDC - Nom
Must Operate Voltage
7 VDC
Must Release Voltage
0.6 VDC
Operate Time
10 ms
Release Time
10 ms
Features
-
Mounting Type
Socketable
Termination Style
Plug In
Operating Temperature
-40°C ~ 85°C
Contact Material
Silver Alloy, Cadmium Free
Coil Power
800mW
Coil Resistance
180 Ohms
Base Product Number
ACV320
Documents & Media
Video File
Relay Basics - Another Teaching Moment | DigiKey Electronics
How to Choose a Relay - Another Teaching Moment
Product Drawings
ACV Series Plug-In
ACV32012 Circuit
ACV Series Bottom
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.41.0050
Additional Resources
Other Names
Standard Package
50
