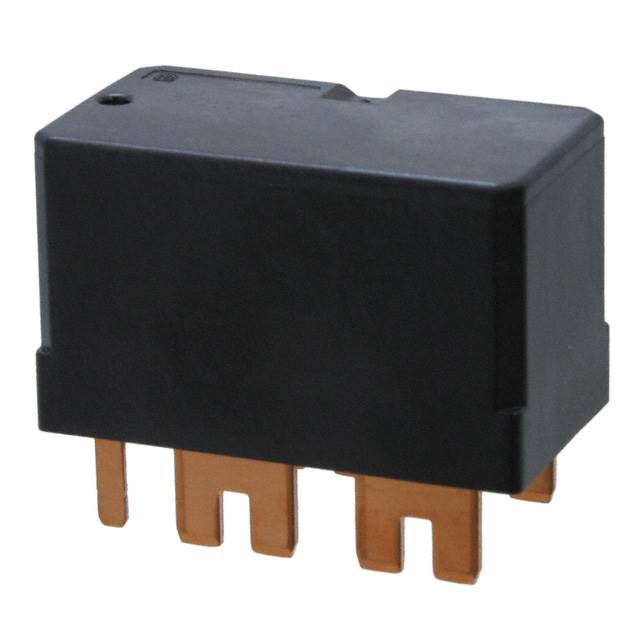

ACW212 Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
ACW212
Product Number:
ACW212
MFR Standard Lead Time:
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE DPST 45A 12V
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
ACW
Packaging
Tray
Part Status
Obsolete
Coil Type
Non Latching
Coil Current
117 mA
Coil Voltage
12VDC
Contact Form
DPST-NO (2 Form A)
Contact Rating (Current)
45 A
Switching Voltage
14VDC - Nom
Must Operate Voltage
6.2 VDC
Must Release Voltage
0.5 VDC
Operate Time
20 ms
Release Time
20 ms
Features
-
Mounting Type
Free Hanging
Termination Style
Quick Connect - 0.079" (2.0mm), Weld Terminal
Operating Temperature
-40°C ~ 125°C
Contact Material
Silver Alloy, Cadmium Free
Coil Power
1.4W
Coil Resistance
103 Ohms
Base Product Number
ACW21
Documents & Media
Datasheets
Video File
Relay Basics - Another Teaching Moment | DigiKey Electronics
How to Choose a Relay - Another Teaching Moment
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8536.41.0050
Additional Resources
Other Names
Standard Package
40
