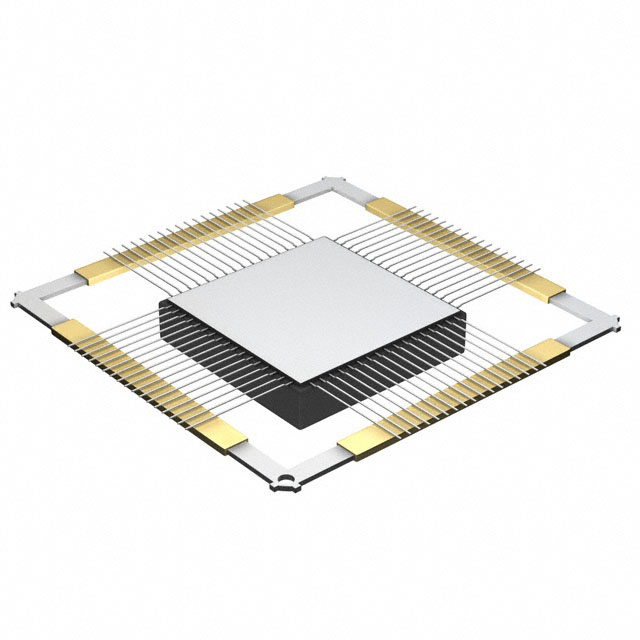

AD13280AF Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
AD13280AF
Product Number:
AD13280AF
MFR Standard Lead Time:
Package/Case:
68-CLCC
Detailed Description:
IC ADC 12BIT PIPELINED 68CLCC
Datasheet:
Descnt:
12 Bit Analog to Digital Converter 12 Input 2 Pipelined 68-CLCC (24.13x24.13)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
-
Packaging
Tube
Part Status
Obsolete
Number of Bits
12
Sampling Rate (Per Second)
80M
Number of Inputs
12
Input Type
Differential, Single Ended
Data Interface
Parallel
Configuration
S/H-ADC
Ratio - S/H:ADC
1:1
Number of A/D Converters
2
Architecture
Pipelined
Reference Type
Internal
Voltage - Supply, Analog
5V
Voltage - Supply, Digital
3.135V ~ 3.465V
Features
Simultaneous Sampling
Operating Temperature
-40°C ~ 85°C
Package / Case
68-CLCC
Supplier Device Package
68-CLCC (24.13x24.13)
Mounting Type
Surface Mount
Base Product Number
AD13280
Documents & Media
Datasheets
Featured Product
Interactive RF Signal Chain
Analog Devices IoT and the Intelligence of Things
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1
