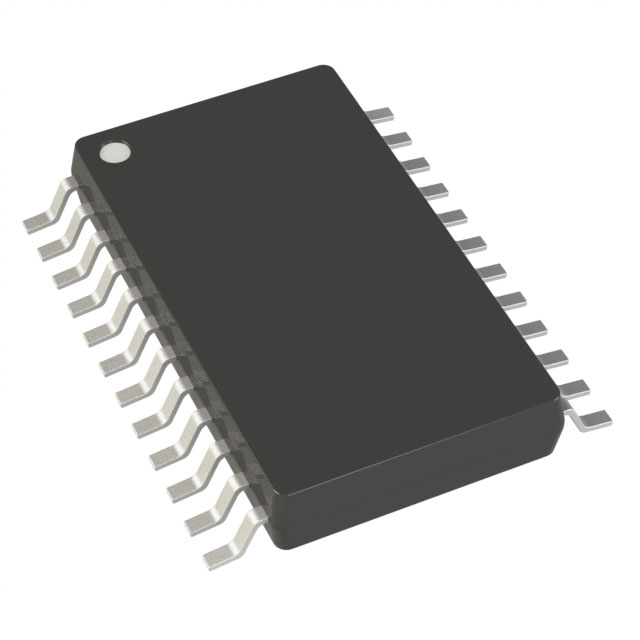

AD5422BREZ Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
AD5422BREZ
Product Number:
AD5422BREZ
MFR Standard Lead Time:
10 Weeks
Package/Case:
24-TSSOP (0.173\, 4.40mm Width) Exposed Pad
Detailed Description:
IC DAC 16BIT V OR A-OUT 24TSSOP
Datasheet:
Descnt:
16 Bit Digital to Analog Converter 1 24-TSSOP-EP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
-
Packaging
Tube
Part Status
Active
DigiKey Programmable
Not Verified
Number of Bits
16
Number of D/A Converters
1
Settling Time
25µs (V), 40µs (A) (Typ)
Output Type
Voltage or Current - Buffered
Differential Output
No
Data Interface
SPI, DSP
Reference Type
External, Internal
Voltage - Supply, Analog
10.8V ~ 40V, -3V ~ 26.4V
Voltage - Supply, Digital
2.7V ~ 5.5V
INL/DNL (LSB)
-, ±1.3 (Max)
Architecture
R-2R
Operating Temperature
-40°C ~ 105°C
Package / Case
24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package
24-TSSOP-EP
Mounting Type
Surface Mount
Base Product Number
AD5422
-
Documents & Media
Product Training Modules
Data Converter Fundamentals
Five Things to Know About DACs Part 5: Dynamic Performance
Five Things to Know About DACs Part 4: Buffering
Design Resources
Featured Product
Interactive RF Signal Chain
Analog Devices IoT and the Intelligence of Things
PCN Design/Specification
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
62
