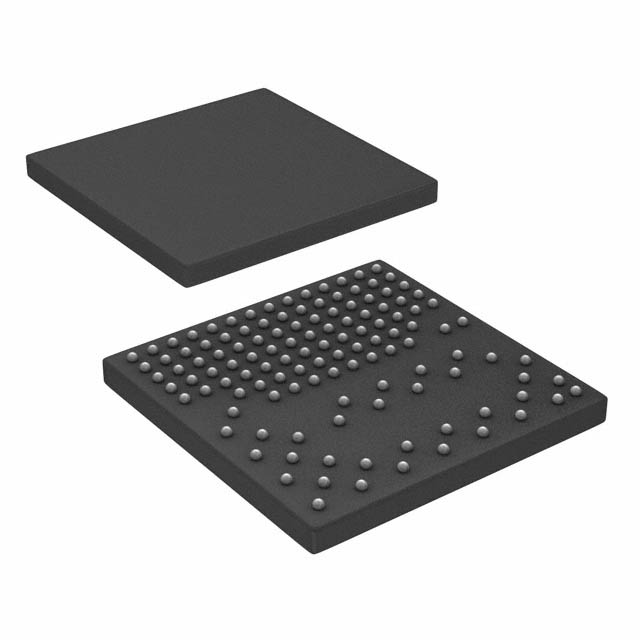

AD5535BKBCZ Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
AD5535BKBCZ
Product Number:
AD5535BKBCZ
MFR Standard Lead Time:
10 Weeks
Package/Case:
124-LBGA, CSPBGA
Detailed Description:
IC DAC 14BIT V-OUT 124CSPBGA
Datasheet:
Descnt:
14 Bit Digital to Analog Converter 32 124-CSPBGA (15x15)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
denseDAC
Packaging
Tray
Part Status
Active
DigiKey Programmable
Not Verified
Number of Bits
14
Number of D/A Converters
32
Settling Time
65µs (Typ)
Output Type
Voltage - Buffered
Differential Output
No
Data Interface
SPI, DSP
Reference Type
External
Voltage - Supply, Analog
5V
Voltage - Supply, Digital
2.7V ~ 5.25V
INL/DNL (LSB)
±0.1, ±0.5
Architecture
String DAC
Operating Temperature
-10°C ~ 85°C
Package / Case
124-LBGA, CSPBGA
Supplier Device Package
124-CSPBGA (15x15)
Mounting Type
Surface Mount
Base Product Number
AD5535
-
Documents & Media
Datasheets
Featured Product
Interactive RF Signal Chain
Analog Devices IoT and the Intelligence of Things
PCN Design/Specification
AD5535B Materials Chg 9/Apr/2020
AD5535BKBCZ BOM Chg 2/Sep/2020
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1
