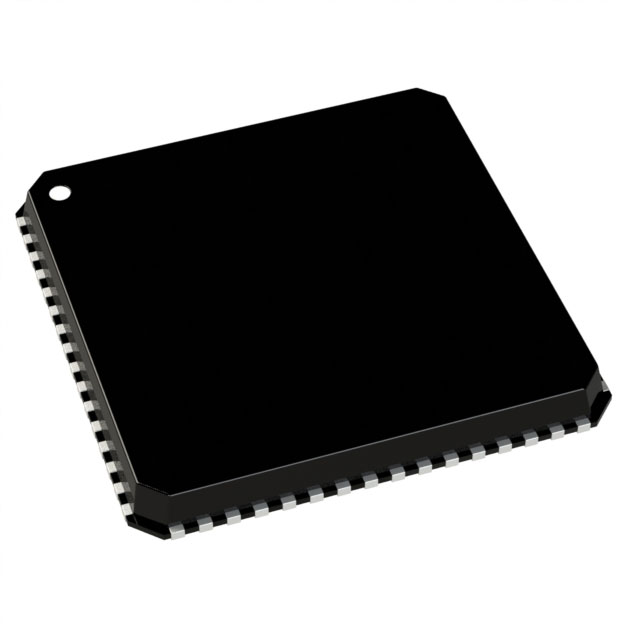

AD5755BCPZ Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
AD5755BCPZ
Product Number:
AD5755BCPZ
MFR Standard Lead Time:
10 Weeks
Package/Case:
64-VFQFN Exposed Pad, CSP
Detailed Description:
IC DAC 16BIT V OR A-OUT 64LFCSP
Datasheet:
Descnt:
16 Bit Digital to Analog Converter 4 64-LFCSP-VQ (9x9)
In Stock
1213
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
AD5755
Packaging
Tray
Part Status
Active
DigiKey Programmable
Not Verified
Number of Bits
16
Number of D/A Converters
4
Settling Time
18µs
Output Type
Voltage - Buffered, Current - Unbuffered
Differential Output
No
Data Interface
SPI, DSP
Reference Type
External, Internal
Voltage - Supply, Analog
9V ~ 33V
Voltage - Supply, Digital
2.7V ~ 5.5V
INL/DNL (LSB)
±1, ±1 (Max)
Architecture
R-2R
Operating Temperature
-40°C ~ 105°C
Package / Case
64-VFQFN Exposed Pad, CSP
Supplier Device Package
64-LFCSP-VQ (9x9)
Mounting Type
Surface Mount
Base Product Number
AD5755
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1
