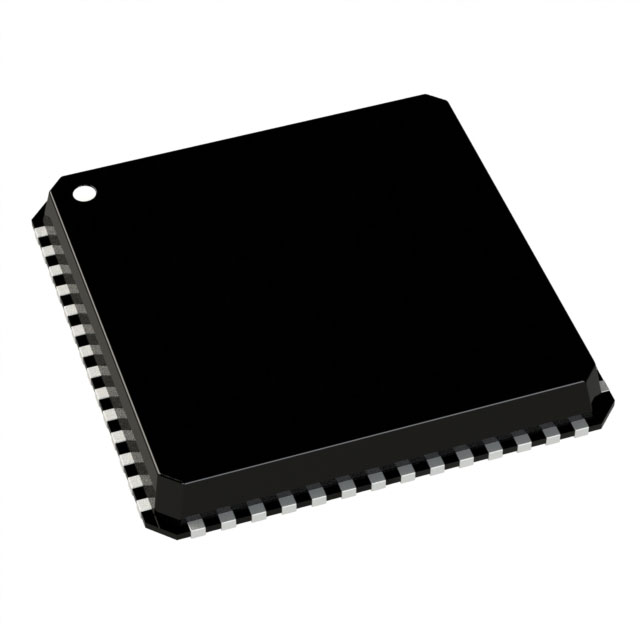

AD9958BCPZ Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
AD9958BCPZ
Product Number:
AD9958BCPZ
MFR Standard Lead Time:
10 Weeks
Package/Case:
56-VFQFN Exposed Pad, CSP
Detailed Description:
IC DDS 500MHZ 10BIT 56LFCSP
Datasheet:
Descnt:
Direct Digital Synthesis IC 10 b 500 MHz 32 b Tuning 56-LFCSP-VQ (8x8)
In Stock
81
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
-
Packaging
Tray
Part Status
Active
Resolution (Bits)
10 b
Master fclk
500 MHz
Tuning Word Width (Bits)
32 b
Voltage - Supply
1.71V ~ 1.96V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
56-VFQFN Exposed Pad, CSP
Supplier Device Package
56-LFCSP-VQ (8x8)
Base Product Number
AD9958
-
Documents & Media
Datasheets
Product Training Modules
Five Things to Know About DACs Part 5: Dynamic Performance
Direct Digital Synthesis Tutorial Series (3 of 7): Angle to Amplitude Converter
Direct Digital Synthesis Tutorial Series (4 of 7): Digital-to-Analog Converter
Design Resources
Phase Coherent FSK Modulator (CN0186)
Low Jitter Sampling Clock Generator for High Performance ADCs Using AD9958/9858 and AD9515 (CN0109)
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1
