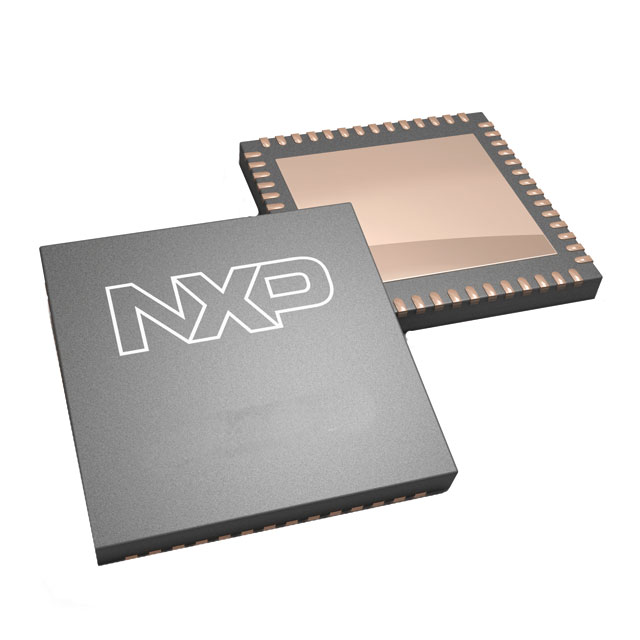

ADC1413D080HN/C1,5 NXP USA Inc.
Favorite
Compare
Manufacturer:
NXP USA Inc.
MFR Product Number:
ADC1413D080HN/C1,5
Product Number:
ADC1413D080HN-C1-5
MFR Standard Lead Time:
Package/Case:
56-VFQFN Exposed Pad
Detailed Description:
IC ADC 14BIT PIPELINED 56HVQFN
Datasheet:
Descnt:
14 Bit Analog to Digital Converter 2 Input 2 Pipelined 56-HVQFN (8x8)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
NXP USA Inc.
Series
-
Packaging
Tray
Part Status
Active
Number of Bits
14
Sampling Rate (Per Second)
80M
Number of Inputs
2
Input Type
Differential, Single Ended
Data Interface
JESD204A
Configuration
S/H-ADC
Ratio - S/H:ADC
1:1
Number of A/D Converters
2
Architecture
Pipelined
Reference Type
External, Internal
Voltage - Supply, Analog
2.85V ~ 3.4V
Voltage - Supply, Digital
1.65V ~ 1.95V
Features
Simultaneous Sampling
Operating Temperature
-40°C ~ 85°C
Package / Case
56-VFQFN Exposed Pad
Supplier Device Package
56-HVQFN (8x8)
Mounting Type
Surface Mount
Base Product Number
ADC1413
Documents & Media
Environmental Information
NXP USA Inc RoHS Cert
NXP USA Inc REACH
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
3A991C3
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
260
