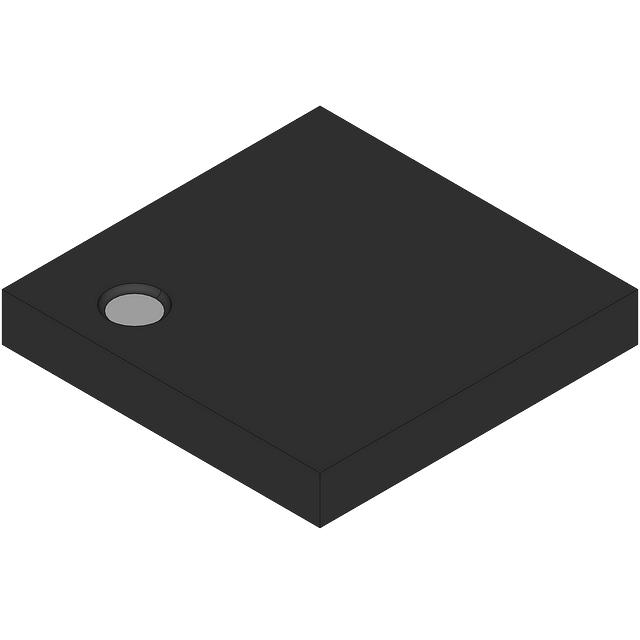

ADCMP563BCP-R2 Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
ADCMP563BCP-R2
Product Number:
ADCMP563BCP-R2
MFR Standard Lead Time:
Package/Case:
16-WFQFN Exposed Pad, CSP
Detailed Description:
IC COMPARATOR 2 W/LATCH 16LFCSP
Datasheet:
Descnt:
Comparator with Latch Complementary 16-LFCSP-WQ (3x3)
In Stock
5234
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
-
Packaging
Bulk
Part Status
Active
Type
with Latch
Number of Elements
2
Output Type
Complementary
Voltage - Supply, Single/Dual (±)
4.75V ~ 5.25V, ±2.375V ~ 2.625V
Voltage - Input Offset (Max)
10mV 5V
Current - Input Bias (Max)
10µA 5V
Current - Output (Typ)
30mA
Current - Quiescent (Max)
5mA, 25mA
CMRR, PSRR (Typ)
80dB CMRR, 85dB PSRR
Propagation Delay (Max)
0.83ns
Hysteresis
±1mV
Operating Temperature
-40°C ~ 85°C
Package / Case
16-WFQFN Exposed Pad, CSP
Mounting Type
Surface Mount
Supplier Device Package
16-LFCSP-WQ (3x3)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
77
