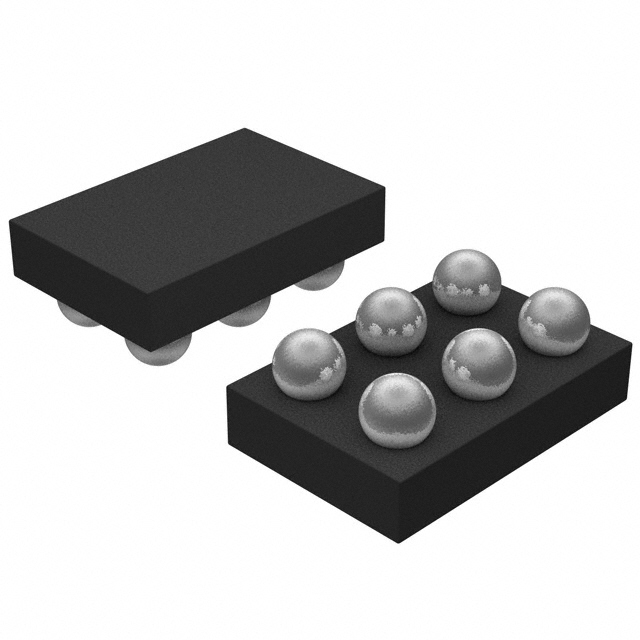

ADG819BCBZ-REEL7 Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
ADG819BCBZ-REEL7
Product Number:
ADG819BCBZ-REEL7
MFR Standard Lead Time:
13 Weeks
Package/Case:
6-WFBGA, WLCSP
Detailed Description:
IC SWITCH SPDTX1 600MOHM 6WLCSP
Datasheet:
Descnt:
1 Circuit IC Switch 2:1 600mOhm 6-WLCSP (1.14x2.18)
In Stock
4530
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
1
On-State Resistance (Max)
600mOhm
Channel-to-Channel Matching (ΔRon)
60mOhm
Voltage - Supply, Single (V+)
1.8V ~ 5.5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
45ns, 16ns
-3db Bandwidth
17MHz
Charge Injection
20pC
Channel Capacitance (CS(off), CD(off))
80pF
Current - Leakage (IS(off)) (Max)
250pA
Crosstalk
-72dB 100kHz
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
6-WFBGA, WLCSP
Supplier Device Package
6-WLCSP (1.14x2.18)
Base Product Number
ADG819
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
